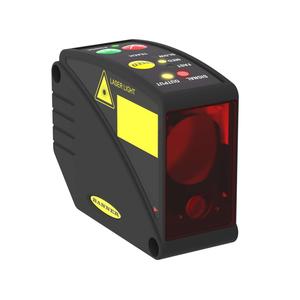

Banner LT3PILVQ Laser Distance Measurement
The Banner LT3PILVQ Laser Distance Measurement offers a Visible Red Laser sensing beam, Time of Flight sensing mode, 1 PNP output, and Integral QD connection. Manufactured by Banner under the Banner Laser Distance Measurement category, this model belongs to the LE Series.
| Sensing Mode (Detailed) | Time of Flight |
| Power Supply | 12-24 V dc |
| Max Sensing Distance (mm) | 50000 |
Banner LT3PILVQ Laser Distance Measurement - Technical Specifications
| Specification | Value |
|---|---|
| Type | LT3 Series 50 m Range Time-of-Flight Laser Sensor |
| Sensing Beam | Visible Red Laser |
| Power | DC |
| NEMA / UL Type Rating | NEMA 4X |
| IP Rating | IP67 |
| Sensing Mode (General) | Retroreflective |
| Sensing Mode (Detailed) | Time of Flight |
| Housing Style | Rectangular |
| Device Type | Sensor |
| Primary Housing Material | ABS |
| Laser Classification | Class 1 |
| Input Output | Analog & Discrete |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Max Sensing Distance (mm) | 50000 |
| Minimum Sensing Distance (mm) | 500 |
| Power Supply | 12-24 V dc |
| Adjustments | Push Button; Remote Teach |
| Number of Pins | 8 |
| Discrete (Switched) Outputs | 1 PNP |
| Max Operating Temperature (Β°C) | 50 |
| Min Operating Temperature (Β°C) | 1 |
| Minimum Response Time (ms) | 1 |
| Laser Control | Yes |
| Max Ambient Light (Lux) | 5000 |
| Feature: Remote Teach | Yes |
| Feature: Quick Disconnect | Yes |
| Analog Output Configuration | 4-20 mA |
