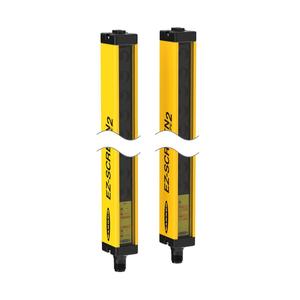

Banner LS2TP30-600Q88 Safety Light Curtain

The Banner LS2TP30-600Q88 safety grid system provides 30 mm hand detection with 600 mm protective height for machine safety. This emitter and receiver pair operates on 24 V DC, supports 0.2–15 m operating range, delivers 16 ms response time, provides redundant OSSD trip outputs, features IP65 protection, and is manufactured by Banner. It belongs to the Banner Safety Light Curtain category within the Type 2 series for industrial automation use.

Banner LS2TP30-600Q88
Datasheet
BrandBanner
Product TypeSafety Light Curtain
Model NumberLS2TP30-600Q88

Banner LS2TP30-600Q88 Safety Light Curtain – Technical Specifications

SpecificationValue
TypeType 2 Series
IP RatingIP65
Primary Housing MaterialAluminum
Connector TypeM12
Defined Area Height Range (mm)>350 - <=650
Max Operating Range (m)>8 - <=20
Safety LevelType 2
Effective Aperture AngleType 2 Per IEC 61496-2
Defined Area Height (mm)600
Dimensions WxD (mm)25.4 x 31.8
Overall Length (mm)665
External Monitoring DeviceNo
Housing FinishYellow Polyester
Number of Pins (Receiver/Emitter)8
Operating Distance (m)0.2 - 15
Operating Voltage24 V dc +/- 20%
Operating Temperature0 to +55 deg. C; RH 95%
Resolution (mm)30
Reduced ResolutionNo
Response Time16
SIL RatingSIL2; CL2
Electrical Safety ClassIII
Shock10g at 16ms (6000 cycles)
System TypeEmitter/Receiver Pair
Vibration10-55 Hz at 0.35 mm
Housing MaterialAluminum; Zinc; Acrylic
OSSD Rating24 V dc at 0.5 A each
Supply Current140 mA max.
