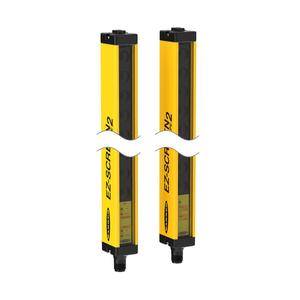

Banner LS2TP30-450Q88 Safety Light Curtain

The Banner LS2TP30-450Q88 safety grid system provides 30 mm hand detection with 450 mm protective height for machine safety. This emitter and receiver pair operates on 24 V DC, supports 0.2–15 m operating range, delivers 14 ms response time, provides Type 2 trip outputs with redundant OSSD, features IP65 protection, and is manufactured by Banner. It belongs to the Banner Safety Light Curtain category within the Type 2 series for industrial automation use.

Banner LS2TP30-450Q88
Datasheet
BrandBanner
Product TypeSafety Light Curtain
Model NumberLS2TP30-450Q88

Banner LS2TP30-450Q88 Safety Light Curtain – Technical Specifications

SpecificationValue
TypeType 2 Series
IP RatingIP65
Primary Housing MaterialAluminum
Connector TypeM12
Defined Area Height Range (mm)>350 - <=650
Max Operating Range (m)>8 - <=20
Safety LevelType 2
Effective Aperture AngleType 2 Per IEC 61496-2
Defined Area Height (mm)450
Dimensions WxD (mm)25.4 x 31.8
Overall Length (mm)515
External Monitoring DeviceNo
Housing FinishYellow Polyester
Number of Pins (Receiver/Emitter)8
Operating Distance (m)0.2 - 15
Operating Voltage24 V dc +/- 20%
Operating Temperature0 to +55 deg. C; RH 95%
Resolution (mm)30
Reduced ResolutionNo
Response Time14
SIL RatingSIL2; CL2
Electrical Safety ClassIII
Shock10g at 16ms (6000 cycles)
System TypeEmitter/Receiver Pair
Vibration10-55 Hz at 0.35 mm
Housing MaterialAluminum; Zinc; Acrylic
OSSD Rating24 V dc at 0.5 A each
Supply Current140 mA max.
