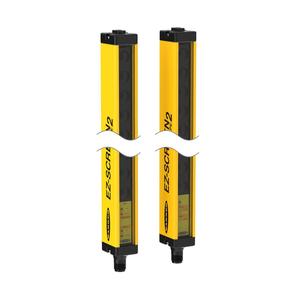

Banner LS2TP30-150Q88 Safety Light Curtain
The Banner LS2TP30-150Q88 safety grid system provides 30 mm hand detection with 150 mm protective height for machine safety. This emitter and receiver pair operates on 24 V DC, supports 0.2–15 m operating range, delivers 11 ms response time, provides Type 2 safety outputs with redundant OSSD, features IP65 protection, and is manufactured by Banner. It belongs to the Banner Safety Light Curtain category within the Safety Grid System series for industrial automation use.
| Brand | Banner |
| Product Type | Safety Light Curtain |
| Model Number | LS2TP30-150Q88 |
Banner LS2TP30-150Q88 Safety Light Curtain – Technical Specifications
| Specification | Value |
|---|---|
| Type | Type 2 Series |
| IP Rating | IP65 |
| Primary Housing Material | Aluminum |
| Connector Type | M12 |
| Defined Area Height Range (mm) | <=350 |
| Max Operating Range (m) | >8 - <=20 |
| Safety Level | Type 2 |
| Effective Aperture Angle | Type 2 Per IEC 61496-2 |
| Defined Area Height (mm) | 150 |
| Dimensions WxD (mm) | 25.4 x 31.8 |
| Overall Length (mm) | 215 |
| External Monitoring Device | No |
| Housing Finish | Yellow Polyester |
| Number of Pins (Receiver/Emitter) | 8 |
| Operating Distance (m) | 0.2 - 15 |
| Operating Voltage | 24 V dc +/- 20% |
| Operating Temperature | 0 to +55 deg. C; RH 95% |
| Resolution (mm) | 30 |
| Reduced Resolution | No |
| Response Time | 11 |
| SIL Rating | SIL2; CL2 |
| Electrical Safety Class | III |
| Shock | 10g at 16ms (6000 cycles) |
| System Type | Emitter/Receiver Pair |
| Vibration | 10-55 Hz at 0.35 mm |
| Housing Material | Aluminum; Zinc; Acrylic |
| OSSD Rating | 24 V dc at 0.5 A each |
| Supply Current | 140 mA max. |
