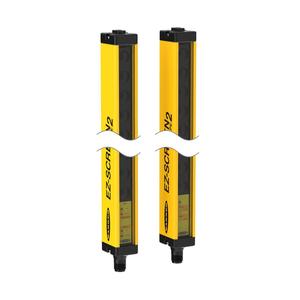

Home Brands Banner Safety Light Curtain LS2LP30-1650Q88 Banner LS2LP30-1650Q88 Safety Light Curtain The Banner LS2LP30-1650Q88 Safety Light Curtain offers a Type 2 safety level, >8 - <=20 m operating range, 1650 mm height, and M12 connection. Manufactured by Banner under the Banner Safety Light Curtain category, this model belongs to the SGS Series.
Brand Banner Product Type Safety Light Curtain Model Number LS2LP30-1650Q88
Banner LS2LP30-1650Q88 Safety Light Curtain β Technical Specifications Specification Value Type Type 2 Series IP Rating IP65 Primary Housing Material Aluminum Connector Type M12 Defined Area Height Range (mm) >1300 Max Operating Range (m) >8 - <=20 Safety Level Type 2 Effective Aperture Angle Type 2 Per IEC 61496-2 Defined Area Height (mm) 1650 Dimensions WxD (mm) 25.4 x 31.8 Overall Length (mm) 1733 External Monitoring Device No Housing Finish Yellow Polyester Number of Pins (Receiver/Emitter) 8 Operating Distance (m) 0.2 - 15 Operating Voltage 24 V dc +/- 20% Operating Temperature 0 to +55 deg. C; RH 95% Resolution (mm) 30 Reduced Resolution No Response Time 27 SIL Rating SIL2; CL2 Electrical Safety Class III Shock 10g at 16ms (6000 cycles) System Type Emitter/Receiver Pair Vibration 10-55 Hz at 0.35 mm Housing Material Aluminum; Zinc; Acrylic OSSD Rating 24 V dc at 0.5 A each Supply Current 140 mA max.
