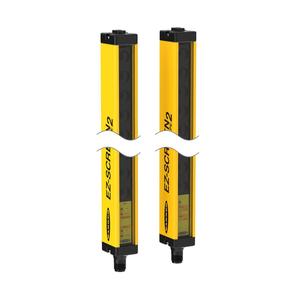

Banner LS2LP30-1200Q88 Safety Light Curtain
The Banner LS2LP30-1200Q88 Safety Light Curtain offers a Type 2 safety level, >8 - <=20 m operating range, 1200 mm height, and M12 connection. Manufactured by Banner under the Banner Safety Light Curtain category, this model belongs to the SGS Series.
| Brand | Banner |
| Product Type | Safety Light Curtain |
| Model Number | LS2LP30-1200Q88 |
Banner LS2LP30-1200Q88 Safety Light Curtain β Technical Specifications
| Specification | Value |
|---|---|
| Type | Type 2 Series |
| IP Rating | IP65 |
| Primary Housing Material | Aluminum |
| Connector Type | M12 |
| Defined Area Height Range (mm) | >950 - <=1300 |
| Max Operating Range (m) | >8 - <=20 |
| Safety Level | Type 2 |
| Effective Aperture Angle | Type 2 Per IEC 61496-2 |
| Defined Area Height (mm) | 1200 |
| Dimensions WxD (mm) | 25.4 x 31.8 |
| Overall Length (mm) | 1264 |
| External Monitoring Device | No |
| Housing Finish | Yellow Polyester |
| Number of Pins (Receiver/Emitter) | 8 |
| Operating Distance (m) | 0.2 - 15 |
| Operating Voltage | 24 V dc +/- 20% |
| Operating Temperature | 0 to +55 deg. C; RH 95% |
| Resolution (mm) | 30 |
| Reduced Resolution | No |
| Response Time | 22 |
| SIL Rating | SIL2; CL2 |
| Electrical Safety Class | III |
| Shock | 10g at 16ms (6000 cycles) |
| System Type | Emitter/Receiver Pair |
| Vibration | 10-55 Hz at 0.35 mm |
| Housing Material | Aluminum; Zinc; Acrylic |
| OSSD Rating | 24 V dc at 0.5 A each |
| Supply Current | 140 mA max. |
