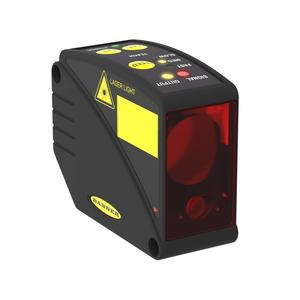

Many engineers reviewing Banner BANNERENGINEERING-LM80KIQP also explore Banner Photoelectric Sensor, Banner Bannerengineering Lt3Piq and Banner Safety Light Curtain Type 4 S4B, ensuring they don’t miss strong alternatives before finalizing procurement decisions.

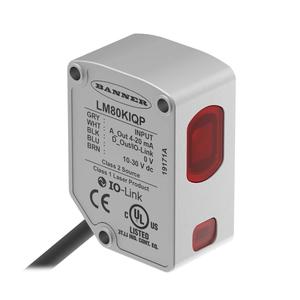

Banner LM80KIQP Laser Distance Measurement
The Banner LM80KIQP Laser Distance Measurement offers a Visible Red Laser sensing beam, Triangulation sensing mode, 1 NPN/PNP Configurable output, and Pigtail QD connection. Manufactured by Banner under the Banner Laser Distance Measurement category, this model belongs to the LE Series.
| Sensing Mode (Detailed) | Triangulation |
| Power Supply | 10-30 V dc |
| Max Sensing Distance (mm) | 80 |
Banner LM80KIQP Laser Distance Measurement - Technical Specifications
| Specification | Value |
|---|---|
| Type | LM Series Precision Measurement Sensor |
| Sensing Beam | Visible Red Laser |
| Power | DC |
| NEMA / UL Type Rating | NEMA 4X |
| IP Rating | IP67 |
| Sensing Mode (General) | Proximity |
| Sensing Mode (Detailed) | Triangulation |
| Housing Style | Rectangular |
| Device Type | Sensor |
| Primary Housing Material | Stainless Steel |
| Laser Classification | Class 1 |
| Input Output | Analog & Discrete |
| Connection | Pigtail QD |
| Quick Disconnect Type | M12 |
| Max Sensing Distance (mm) | 80 |
| Minimum Sensing Distance (mm) | 40 |
| Power Supply | 10-30 V dc |
| Number of Pins | 5 |
| Discrete (Switched) Outputs | 1 NPN/PNP Configurable |
| Max Operating Temperature (°C) | 55 |
| Laser Control | Yes |
| Max Ambient Light (Lux) | 10000 |
| Feature: Remote Teach | Yes |
| Feature: Timing (Hold/Delay) | Yes |
| Feature: Quick Disconnect | Yes |
| Feature: Health/Marginal Signal Output | Yes |
| IO Link | Yes |
| Cable Length (m) | 0.3 |
| Analog Output Configuration | 4-20 mA |
| Max Measurement Range | <= 100 mm |
| Feature: Clear Object Detection | Yes |
| Feature: Chemical Resistant | Yes |
