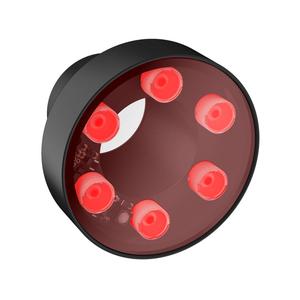

Banner LEDRRV75PM Vision Light
The Banner LEDRRV75PM Vision Light offers a Ring Light type, 24 V dc supply voltage, and Integral QD connection. Manufactured by Banner under the Banner Vision Light category, this model belongs to the right light Series.
| Brand | Banner |
| Product Type | Vision Light |
| Model Number | LEDRRV75PM |
Banner LEDRRV75PM Vision Light β Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Round |
| IP Rating | IP67 |
| Power | DC |
| Primary Housing Material | Aluminum |
| Connection | Integral QD |
| Color Technology | Standard LED |
| Quick Disconnect Type | M8 |
| Max Current Color (mA) | 270 |
| Number of Input Pins/Conductors | 3 |
| Supply Voltage | 24 V dc |
| Physical Dimensions (LxWxH or DxH mm) | 98.0 x 75.8 |
| High Temperature (up to 100Β° C) | 50 |
| Min Op. Temperature (Β°C) | -20 |
| Feature: Quick Disconnect | Yes |
| Device Type | Ring Light |
| Connection Type | Pigtail QD |
| QD Type/Cable Length | 350 mm; M8 |
| Color | Red |
| Window Material | Polycarbonate |
