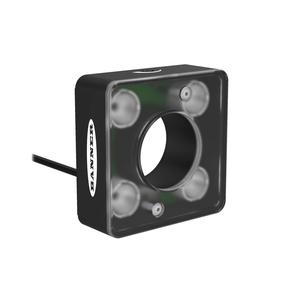

Banner LEDRR70XD5-PM Vision Light
The Banner LEDRR70XD5-PM Vision Light offers a Ring Light type, 24 V dc supply voltage, and connection. Manufactured by Banner under the Banner Vision Light category, this model belongs to the right light Series.
| Brand | Banner |
| Product Type | Vision Light |
| Model Number | LEDRR70XD5-PM |
Banner LEDRR70XD5-PM Vision Light β Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Rectangular |
| IP Rating | IP50 |
| Power | DC |
| Primary Housing Material | Anodized Aluminum |
| Color Technology | Standard LED |
| Max Current Color (mA) | 350 |
| Number of Input Pins/Conductors | 3 |
| Supply Voltage | 24 V dc |
| Physical Dimensions (LxWxH or DxH mm) | 76.2 x 76.2 x 38.7 |
| High Temperature (up to 100Β° C) | 50 |
| Feature: Quick Disconnect | Yes |
| Device Type | Ring Light |
| Connection Type | Pigtail QD |
| QD Type/Cable Length | 300 mm; M8 |
| Color | Red |
| Window Material | Acrylic |
| Intensity Adjustment | Potentiometer |
