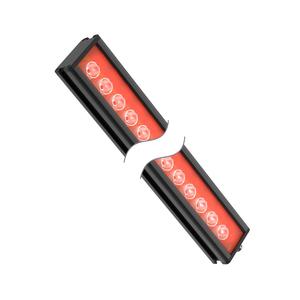

Banner LEDRLB870XW6-XQ Vision Light
The Banner LEDRLB870XW6-XQ Vision Light offers a Linear Array Backlight type, 24 V dc supply voltage, and Integral QD connection. Manufactured by Banner under the Banner Vision Light category, this model belongs to the right light Series.
| Brand | Banner |
| Product Type | Vision Light |
| Model Number | LEDRLB870XW6-XQ |
Banner LEDRLB870XW6-XQ Vision Light β Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Linear Strip |
| IP Rating | IP50 |
| Power | DC |
| Primary Housing Material | Anodized Aluminum |
| Connection | Integral QD |
| Color Technology | Standard LED |
| Quick Disconnect Type | M12 |
| Max Current Color (mA) | 3000 |
| Number of Input Pins/Conductors | 5 |
| Supply Voltage | 24 V dc |
| Physical Dimensions (LxWxH or DxH mm) | 914.6 x 59.4 x 32.6 |
| High Temperature (up to 100Β° C) | 50 |
| Feature: Quick Disconnect | Yes |
| Device Type | Linear Array Backlight |
| Connection Type | Integral QD |
| QD Type/Cable Length | M12; requires mating cordset |
| Color | Red |
| Window Material | Acrylic |
