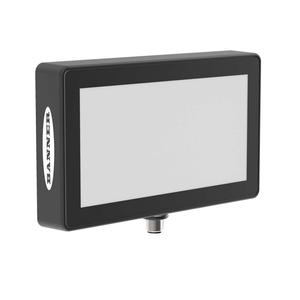

Banner LEDIB75X150PW2-XQ Vision Light
The Banner LEDIB75X150PW2-XQ Vision Light offers a Backlight type, 24 V dc supply voltage, and Integral QD connection. Manufactured by Banner under the Banner Vision Light category, this model belongs to the right light Series.
| Brand | Banner |
| Product Type | Vision Light |
| Model Number | LEDIB75X150PW2-XQ |
Banner LEDIB75X150PW2-XQ Vision Light β Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Rectangular |
| IP Rating | IP67 |
| Power | DC |
| Primary Housing Material | Thermoplastic |
| Connection | Integral QD |
| Color Technology | Standard LED |
| Quick Disconnect Type | M12 |
| Max Current Color (mA) | 550 |
| Number of Input Pins/Conductors | 5 |
| Supply Voltage | 24 V dc |
| Physical Dimensions (LxWxH or DxH mm) | 180.1 x 105.1 x 25.5 |
| High Temperature (up to 100Β° C) | 50 |
| Feature: Quick Disconnect | Yes |
| Device Type | Backlight |
| Connection Type | Integral QD |
| QD Type/Cable Length | M12; requires mating cordset |
| Color | Infrared |
| Window Material | Acrylic |
