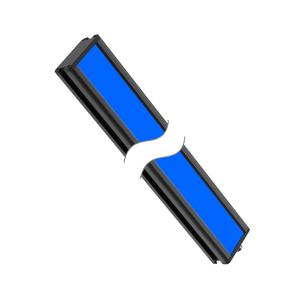

Banner LEDBLA145XD6-XQ Vision Light
The Banner LEDBLA145XD6-XQ Vision Light offers a Bar Light type, 24 V dc supply voltage, and connection. Manufactured by Banner under the Banner Vision Light category, this model belongs to the right light Series.
| Brand | Banner |
| Product Type | Vision Light |
| Model Number | LEDBLA145XD6-XQ |
Banner LEDBLA145XD6-XQ Vision Light β Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Linear Strip |
| IP Rating | IP50 |
| Power | DC |
| Primary Housing Material | Anodized Aluminum |
| Color Technology | Standard LED |
| Max Current Color (mA) | 500 |
| Number of Input Pins/Conductors | 5 |
| Supply Voltage | 24 V dc |
| Physical Dimensions (LxWxH or DxH mm) | 187.1 x 59.4 x 32.6 |
| High Temperature (up to 100Β° C) | 50 |
| Feature: Quick Disconnect | Yes |
| Device Type | Bar Light |
| Connection Type | Integral QD |
| Lens Focusing Angle (Β°)/Field of View | 6.5 |
| QD Type/Cable Length | M12; requires mating cordset |
| Color | Blue |
| Window Material | Diffuse Acrylic |
