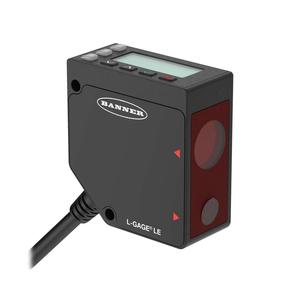

Banner LE250U W/30 Laser Distance Measurement
The Banner LE250U W/30 Laser Distance Measurement offers a Visible Red Laser sensing beam, Triangulation sensing mode, 1 NPN/PNP Configurable output, and Flying Leads connection. Manufactured by Banner under the Banner Laser Distance Measurement category, this model belongs to the LE Series.
| Sensing Mode (Detailed) | Triangulation |
| Power Supply | 12-30 V dc |
| Max Sensing Distance (mm) | 400 |
Banner LE250U W/30 Laser Distance Measurement - Technical Specifications
| Specification | Value |
|---|---|
| Type | LE Series 1 m Range Laser Displacement Sensor |
| Sensing Beam | Visible Red Laser |
| Power | DC |
| NEMA / UL Type Rating | NEMA 4X |
| IP Rating | IP67 |
| Sensing Mode (General) | Proximity |
| Sensing Mode (Detailed) | Triangulation |
| Housing Style | Rectangular |
| Device Type | Sensor |
| Primary Housing Material | Zinc Alloy Die-Cast |
| Laser Classification | Class 2 |
| Input Output | Analog & Discrete |
| Connection | Flying Leads |
| Max Sensing Distance (mm) | 400 |
| Minimum Sensing Distance (mm) | 100 |
| Power Supply | 12-30 V dc |
| Adjustments | Push Button; Remote Teach |
| Number of Pins | 5 |
| Discrete (Switched) Outputs | 1 NPN/PNP Configurable |
| Max Operating Temperature (Β°C) | 55 |
| Min Operating Temperature (Β°C) | 2 |
| Minimum Response Time (ms) | 2 |
| Laser Control | Yes |
| Max Ambient Light (Lux) | 10000 |
| Feature: Remote Teach | Yes |
| Feature: Timing (Hold/Delay) | Yes |
| Feature: Health/Marginal Signal Output | Yes |
| Cable Length (m) | 9 |
| Analog Output Configuration | 0-10 V dc |
