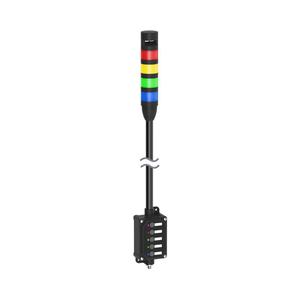

Bannerengineering LCA130T5-TL50BGYRA900Q Tower Light
The Banner LCA130T5-TL50BGYRA900Q Tower Light offers Base Mount - Tower housing style, 4 No. of Colors, No Thread Mounting Method, and Integral QD connection. Manufactured by Banner under the Banner Tower Lights category, this model belongs to the LCA Series.
| Housing Style | Base Mount - Tower |
| Supply Voltage | 18-30 V dc |
| Input Type | Bimodal (PNP/NPN) |
Banner LCA130T5-TL50BGYRA900Q Tower Light – Technical Specifications
| Specification | Value |
|---|---|
| Type | TL50 Andon Tower Lights |
| Housing Style | Base Mount - Tower |
| IP Rating | IP54 |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Connection | Integral QD |
| Feature: Audible | Yes |
| Display | No |
| Indication | Yes |
| Mounting Thread | No Thread |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 4 |
| Product Size (mm) | 50 |
| Color Technology | Standard LED |
| Color Option 1 | Blue |
| Animation Option 1 | Multiple |
| Quick Disconnect Type | M12 |
| Color Option 2 | Green |
| Animation Option 2 | Multiple |
| Color Option 3 | Yellow |
| Animation Option 3 | Multiple |
| Color Option 4 | Red |
| Max Current Color (mA) | 45 |
| Number of Input Pins/Conductors | 4 |
| Supply Voltage | 18-30 V dc |
| Input Type | Bimodal (PNP/NPN) |
| Max Input Response Time (ms) | 10 |
| Physical Dimensions (LxWxH or DxH mm) | 87.6 x 59.4 x 1344 |
| Environmental Rating | IP54 |
| High Temperature (up to 100° C) | 50 |
| Min Op. Temperature (°C) | -40 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Multi-Color Device | Simultaneous Colors On |
| Feature: Quick Disconnect | Yes |
| Audible Alarm Type | Continuous |
| Max Audible Intensity (db at 1m) | 92 |
| Audible Operating Frequency (kHz) | 2.7 |
| Max Current - Audible Alarm (mA) | 25 |
| Max Op. Relative Humidity Non-Condensing (%) | 95% @ 50°C |
| Actuation | Yes |
| Activation Function | Capacitive Touch |
| Button Operation | Latching |
| Animation Option 4 | Multiple |
| Lumens Color 1 | 4 |
| Color 1 - Wavelength/Color Temp/Coordinates | 465 nm |
| Lumens Color 2 | 16.5 |
| Color 2 - Wavelength/Color Temp/Coordinates | 525 nm |
| Lumens Color 3 | 15 |
| Color 3 - Wavelength/Color Temp/Coordinates | 590 nm |
| Lumens Color 4 | 6 |
| Color 4 - Wavelength/Color Temp/Coordinates | 625 nm |
| Number of Tower Light Segments | 5 |
