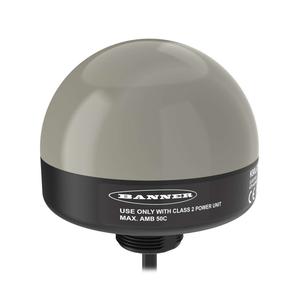

Bannerengineering K90LWBGYRP LED Indicators
Technical Specifications of Banner LED Indicators K90LWBGYRP:
| Housing Style | Base Mount - Dome Window |
| Connection | Cable |
| Supply Voltage | 12-30 V dc |
| Input Type | PNP |
Bannerengineering LED Indicators K90LWBGYRP Technical Specifications
| Specification | Value |
|---|---|
| Type | K90 Series 90 mm Domed Indicators |
| Housing Style | Base Mount - Dome Window |
| IP Rating | IP67 |
| NEMA / UL Type Rating | NEMA 4X, 13 |
| Cable Length (m) | 2 |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Connection | Cable |
| Feature: Audible | No |
| Display | No |
| Indication | Yes |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 5 |
| Product Size (mm) | 90 |
| Color Technology | Standard LED |
| Color Option 1 | Cool White |
| Animation Option 1 | Solid On |
| Color Option 2 | Blue |
| Color Option 3 | Green |
| Color Option 4 | Yellow |
| Color Option 5 | Red |
| Max Current Color (mA) | 475 |
| Wire Selectable Function | Flashing |
| Number of Input Pins/Conductors | 8 |
| Supply Voltage | 12-30 V dc |
| Input Type | PNP |
| Max Input Response Time (ms) | 75 |
| Physical Dimensions (LxWxH or DxH mm) | 90.0 x 87.0 |
| Environmental Rating | IP67 |
| High Temperature (up to 100° C) | 50 |
| Min Op. Temperature (°C) | -40 |
| Primary Window Material | Polycarbonate Diffused |
| Multi-Color Device | Single Color On |
| Lumens Color 1 | 200 |
| Color 1 - Wavelength/Color Temp/Coordinates | 6500K (Cool) |
| Lumens Color 2 | 55 |
| Color 2 - Wavelength/Color Temp/Coordinates | 470 nm |
| Lumens Color 3 | 150 |
| Color 3 - Wavelength/Color Temp/Coordinates | 525 nm |
| Lumens Color 4 | 35 |
| Color 4 - Wavelength/Color Temp/Coordinates | 590 nm |
| Lumens Color 5 | 65 |
| Color 5 - Wavelength/Color Temp/Coordinates | 625 nm |
