In most procurement cycles, BANNERENGINEERING-K80LGXXA120 is considered with Banner Photoelectric Sensor, Banner Safety Light Curtain Type 4 Ls Series and Banner Safety Light Curtain, giving decision-makers confidence that theyβve chosen the most dependable component.

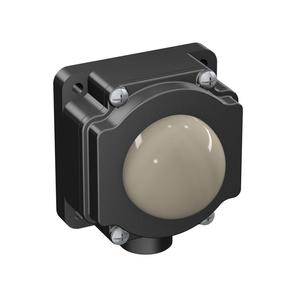

Bannerengineering K80LGXXA120 LED Indicators
Technical Specifications of Banner LED Indicators K80LGXXA120:
| Housing Style | Flat Mount - Dome Window |
| Connection | Terminal |
| Supply Voltage | 85-130 V ac |
| Input Type | AC |
Bannerengineering LED Indicators K80LGXXA120 Technical Specifications
| Specification | Value |
|---|---|
| Type | K80L Series Flat Mount Domed Indicators |
| Housing Style | Flat Mount - Dome Window |
| IP Rating | IP67 |
| Power | AC |
| Primary Housing Material | Polycarbonate |
| Connection | Terminal |
| Feature: Audible | No |
| Display | No |
| Indication | Yes |
| Mounting Thread | No Thread |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 1 |
| Product Size (mm) | 80 |
| Color Technology | Standard LED |
| Color Option 1 | Green |
| Animation Option 1 | Solid On |
| Max Current Color (mA) | 15 |
| Number of Input Pins/Conductors | 5 |
| Supply Voltage | 85-130 V ac |
| Input Type | AC |
| Max Input Response Time (ms) | 10 |
| Physical Dimensions (LxWxH or DxH mm) | 93.1 x 80.9 x 66.7 |
| Environmental Rating | IP67 |
| High Temperature (up to 100Β° C) | 50 |
| Min Op. Temperature (Β°C) | -40 |
| Primary Housing Color | Yellow |
| Primary Window Material | Acrylic Diffused |
