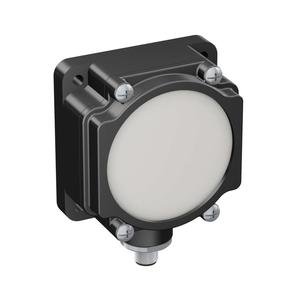

Bannerengineering K80L2HGXGX1PQ LED Indicators
Banner K80L2HGXGX1PQ LED Indicators
| Brand | Banner |
| Product Type | LED Indicator |
| Model Number | K80L2HGXGX1PQ |
Bannerengineering LED Indicators K80L2HGXGX1PQ Technical Specifications
| Specification | Value |
|---|
| Type | K80L Series Segmented Indicators |
| Housing Style | Flat Mount - Flat Window |
| IP Rating | IP67 |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Connection | Integral QD |
| Mounting Thread | No Thread |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 2 |
| Product Size (mm) | 80 |
| Color Technology | Standard LED |
| Color Option 1 | Green |
| Animation Option 1 | Multiple |
| Quick Disconnect Type | M12 |
| Max Current Color (mA) | 90 |
| Supply Voltage | 18-30 V dc |
| Input Type | PNP |
| Max Input Response Time (ms) | 250 |
| Physical Dimensions (LxWxH or DxH mm) | 107.6 x 80.9 x 41.7 |
| Environmental Rating | IP67 |
| High Temperature (up to 100Β° C) | 50 |
| Min Op. Temperature (Β°C) | -40 |
| Primary Housing Color | Yellow |
| Primary Window Material | Acrylic Diffused |
| Multi-Color Device | Simultaneous Colors On |
