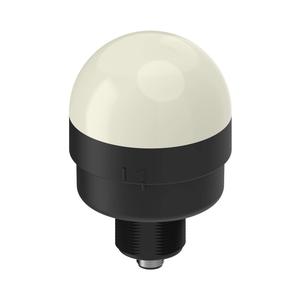

Banner K70DXN9BGYRQ Industrial Wireless
The Banner K70DXN9BGYRQ Industrial Wireless offers a PNP or Communication Protocol input type, 12-30 V dc power supply, 4 No.of colors, and IP65 rating. Manufactured by Banner under the Banner Industrial Wireless category, this model belongs to the K70 Series.
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 4 |
| Supply Voltage | 12-30 V dc |
Banner K70DXN9BGYRQ Industrial Wireless β Technical Specifications
| Specification | Value |
|---|---|
| Type | Wireless K70 Series Indicators |
| Housing Style | Base Mount - Dome Window |
| IP Rating | IP65 |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Connection | Integral QD |
| Feature: Audible | No |
| Display | No |
| Indication | Yes |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 4 |
| Product Size (mm) | 70 |
| Color Technology | Standard LED |
| Color Option 1 | Blue |
| Animation Option 1 | Solid On |
| Quick Disconnect Type | M12 |
| Color Option 2 | Green |
| Color Option 3 | Yellow |
| Color Option 4 | Red |
| Max Current Color (mA) | 200 |
| Number of Input Pins/Conductors | 8 |
| Supply Voltage | 12-30 V dc |
| Input Type | PNP or Communication Protocol |
| Max Input Response Time (ms) | 180 |
| Physical Dimensions (LxWxH or DxH mm) | 70.0 x 107.5 |
| Environmental Rating | IP65 |
| High Temperature (up to 100Β° C) | 50 |
| Min Op. Temperature (Β°C) | -40 |
| Primary Housing Color | Black |
| Multi-Color Device | Single Color On |
| Feature: Quick Disconnect | Yes |
| Max Op. Relative Humidity Non-Condensing (%) | 95% @ 50Β°C |
| Lumens Color 1 | 22 |
| Color 1 - Wavelength/Color Temp/Coordinates | 470 nm |
| Lumens Color 2 | 65 |
| Color 2 - Wavelength/Color Temp/Coordinates | 525 nm |
| Lumens Color 3 | 22 |
| Color 3 - Wavelength/Color Temp/Coordinates | 590 nm |
| Wireless | Yes |
| Wireless Radio Frequency | 900 MHz |
| Wireless Network | Node |
| Lumens Color 4 | 34 |
| Color 4 - Wavelength/Color Temp/Coordinates | 625 nm |
