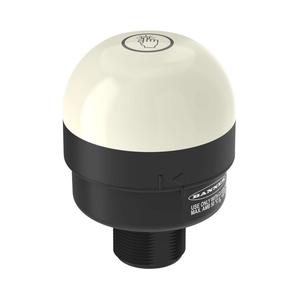

Banner K70DXN2T2GRYBX-B NB Touch Button
The Banner K70DXN2T2GRYBX-B NB Touch Button offers a Base Mount - Dome Window housing style, Connection, Normally Open operation, and IP65 rating. Manufactured by Banner under the Banner Touch Button category, this model belongs to the K30 Series.
| Color Technology | Standard LED |
| Supply Voltage | 3.6 V dc |
Banner K70DXN2T2GRYBX-B NB Touch Button - Technical Specifications
| Specification | Value |
|---|---|
| Type | K70 Core Series 70 mm Multipurpose Illuminated Touch Buttons |
| Housing Style | Base Mount - Dome Window |
| IP Rating | IP65 |
| Power | Battery |
| Primary Housing Material | Polycarbonate |
| Operation | Normally Open |
| Feature: Audible | No |
| Display | No |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Communication Protocol |
| Number of Colors | 4 |
| Product Size (mm) | 70 |
| Color Technology | Standard LED |
| Color Option 1 | Green |
| Animation Option 1 | Flashing Only |
| Color Option 2 | Red |
| Color Option 3 | Yellow |
| Color Option 4 | Blue |
| Supply Voltage | 3.6 V dc |
| Input Type | Communication Protocol |
| Max Input Response Time (ms) | 180 |
| Physical Dimensions (LxWxH or DxH mm) | 70.0 x 95.5 |
| Environmental Rating | IP65 |
| High Temperature (up to 100Β° C) | 50 |
| Min Op. Temperature (Β°C) | -40 |
| Primary Housing Color | Black |
| Multi-Color Device | Simultaneous Colors On |
| Max Op. Relative Humidity Non-Condensing (%) | 95% @ 50Β°C |
| Activation Function | Capacitive Touch |
| Output Type | Communication Protocol |
| Button Operation | Momentary and Latching |
| Wireless | Yes |
| Wireless Radio Frequency | 2.4 GHz |
| Cert: Korea | Yes |
| Cert: Canada | Yes |
| Cert: Thailand | Yes |
| Cert: US | Yes |
| Wireless Network | Node |
| Ships with Battery | No |
