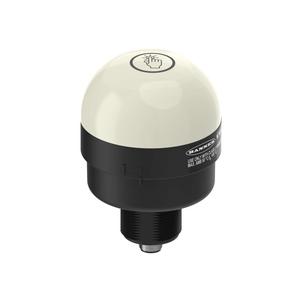

Banner K70APT2GXDQ Lighting and Indication
The Banner K70APT2GXDQ Lighting and Indication offers a Base Mount - Dome Window style, PNP input type, 12-30 V dc supply voltage, and Integral QD connection. Manufactured by Banner under the Banner Lighting and Indication category, this model belongs to the Andon lights.
| Brand | Banner |
| Product Type | Lighting and Indication |
| Model Number | K70APT2GXDQ |
Banner K70APT2GXDQ Lighting and Indication – Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Base Mount - Dome Window |
| IP Rating | IP65 |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Connection | Integral QD |
| Operation | Normally Open |
| Feature: Audible | No |
| Display | No |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 1 |
| Product Size (mm) | 70 |
| Color Technology | Standard LED |
| Color Option 1 | Green |
| Animation Option 1 | Solid On |
| Quick Disconnect Type | M12 |
| Max Current Color (mA) | 220 |
| Number of Input Pins/Conductors | 5 |
| Supply Voltage | 12-30 V dc |
| Input Type | PNP |
| Physical Dimensions (LxWxH or DxH mm) | 70.0 x 103.5 |
| Environmental Rating | IP65 |
| High Temperature (up to 100° C) | 50 |
| Min Op. Temperature (°C) | -40 |
| Primary Housing Color | Black |
| Feature: Quick Disconnect | Yes |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50°C |
| Actuation | Yes |
| Activation Function | Capacitive Touch |
| Pick-to-Light Function | D |
| Output Type | PNP |
| Max Output Response Time (ms) | 50 |
| Job Light | Green |
| Lumens Color 1 | 45 |
| Color 1 - Wavelength/Color Temp/Coordinates | 525 nm |
