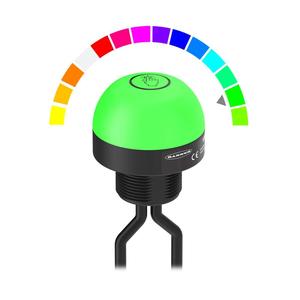

Home Brands Banner Touch Button K50PTSQ2PS Banner K50PTSQ2PS Touch Button The Banner K50PTSQ2PS Touch Button offers a Base Mount - Dome Window housing style, Pigtail QD Connection, Programmable operation, and IP67, IP69K rating. Manufactured by Banner under the Banner Touch Button category, this model belongs to the K30 Series.
Brand Banner Product Type Tower Button Model Number K50PTSQ2PS
Banner K50PTSQ2PS Touch Button - Technical Specifications Specification Value Type K50 Pro Series 50 mm Programmable Multicolor Touch Button Housing Style Base Mount - Dome Window IP Rating IP67, IP69K Cable Length (m) 0.24 Power DC Primary Housing Material Polycarbonate Connection Pigtail QD Operation Programmable Mounting Thread M30 x 1.5 Color Input Control Communication Protocol Number of Colors Programmable Product Size (mm) 50 Color Technology RGB Configurable Color Option 1 RGB Animation Option 1 Modbus Controlled Quick Disconnect Type M12 Max Current Color (mA) 132 Number of Input Pins/Conductors 5 Supply Voltage 18-30 V dc Input Type Communication Protocol Physical Dimensions (LxWxH or DxH mm) 50.0 x 66.0 Environmental Rating IP67; IP69K High Temperature (up to 100Β° C) 50 Min Op. Temperature (Β°C) -40 Primary Housing Color Black Primary Window Material Polycarbonate Diffused Multi-Color Device Simultaneous Colors On Output Type Communication Protocol Max Output Response Time (ms) 300
