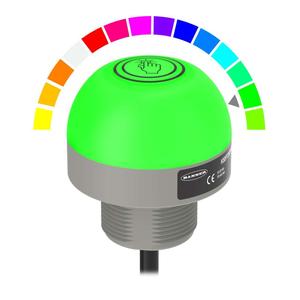

Banner K50PTFKQP Touch Button

Name: Bannerengineering K50PTFKQP
Brand: IndMALL
SKU: 87ab90791d2b
Rating: 4.8 (4 reviews)

The Banner K50PTFKQP Touch Button offers a Base Mount - Dome Window housing style, Pigtail QD Connection, Programmable operation, and IP67, IP69K rating. Manufactured by Banner under the Banner Touch Button category, this model belongs to the K30 Series.

Datasheet

Connection	Pigtail QD
Color Technology	RGB IO-Link
Supply Voltage	18-30 V dc

Banner K50PTFKQP Touch Button - Technical Specifications

Specification	Value
Type	K50 Pro Series 50 mm Programmable Multicolor Touch Button
Housing Style	Base Mount - Dome Window
IP Rating	IP67, IP69K
Cable Length (m)	0.15
Power	DC
Primary Housing Material	FDA Copolyester
Connection	Pigtail QD
Operation	Programmable
Feature: Audible	No
Display	No
Mounting Thread	M30 x 1.5
Color Input Control	Communication Protocol
Number of Colors	Programmable
Product Size (mm)	50
Color Technology	RGB IO-Link
Color Option 1	RGB
Animation Option 1	Programmable
Quick Disconnect Type	M12
Max Current Color (mA)	115
Number of Input Pins/Conductors	4
Supply Voltage	18-30 V dc
Input Type	Communication Protocol
Physical Dimensions (LxWxH or DxH mm)	50.0 x 37.0
Environmental Rating	IP67; IP69K
High Temperature (up to 100° C)	50
Min Op. Temperature (°C)	-40
Primary Housing Color	FDA Gray
Primary Window Material	Copolyester Diffused
Multi-Color Device	Simultaneous Colors On
Max Op. Relative Humidity Non-Condensing (%)	90% @ 50°C
Storage Temp (°C)	-40 to 70
Activation Function	Capacitive Touch
Pick-to-Light Function	Programmable
Output Type	Communication Protocol
Max Output Response Time (ms)	300
Button Operation	Programmable
Dimming Option	Programmable
Vibration Feedback	No
