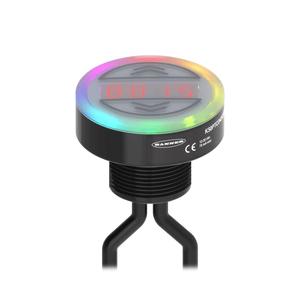

Banner K50PTCD4SQ2PS Touch Button
The Banner K50PTCD4SQ2PS Touch Button offers a Base Mount - Flat Window housing style, Dual Pigtail QD Connection, Programmable operation, and IP67, IP69K rating. Manufactured by Banner under the Banner Touch Button category, this model belongs to the K30 Series.
| Connection | Dual Pigtail QD |
| Color Technology | RGB Configurable |
| Supply Voltage | 10-30 V dc |
Banner K50PTCD4SQ2PS Touch Button - Technical Specifications
| Specification | Value |
|---|---|
| Type | K50 Pro Series 50 mm Programmable Multicolor Touch Button |
| Housing Style | Base Mount - Flat Window |
| IP Rating | IP67, IP69K |
| Cable Length (m) | 0.15 |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Connection | Dual Pigtail QD |
| Operation | Programmable |
| Feature: Audible | No |
| Display | Yes |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Communication Protocol |
| Number of Colors | Programmable |
| Product Size (mm) | 50 |
| Color Technology | RGB Configurable |
| Color Option 1 | RGB |
| Animation Option 1 | Modbus Controlled |
| Quick Disconnect Type | M12 |
| Max Current Color (mA) | 230 |
| Number of Input Pins/Conductors | 5 |
| Supply Voltage | 10-30 V dc |
| Input Type | Communication Protocol |
| Physical Dimensions (LxWxH or DxH mm) | 50.0 x 37.0 |
| Environmental Rating | IP67; IP69K |
| High Temperature (up to 100° C) | 50 |
| Min Op. Temperature (°C) | -40 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Multi-Color Device | Simultaneous Colors On |
| Modbus RTU | Yes |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50°C |
| Storage Temp (°C) | -40 to 70 |
| Activation Function | Capacitive Touch |
| Pick-to-Light Function | Programmable |
| Output Type | Communication Protocol |
| Max Output Response Time (ms) | 300 |
| Button Operation | Programmable |
| Dimming Option | Programmable |
| PICK-IQ (Modbus RTU) | Yes |
| Vibration Feedback | No |
