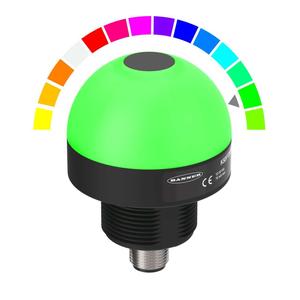

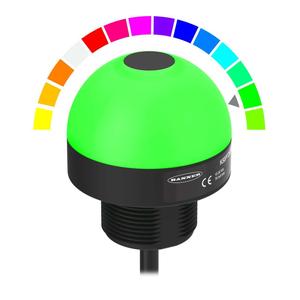

Banner K50PFF50ALGRY3QP Touch Button
The Banner K50PFF50ALGRY3QP Touch Button offers a Base Mount - Dome Window housing style, Pigtail QD Connection, Normally Open operation, and IP67, IP69K rating. Manufactured by Banner under the Banner Touch Button category, this model belongs to the K30 Series.
| Connection | Pigtail QD |
| Color Technology | RGB Configurable |
| Supply Voltage | 12-30 V dc |
Banner K50PFF50ALGRY3QP Touch Button - Technical Specifications
| Specification | Value |
|---|---|
| Type | K50 Pro Series 50 mm Programmable Optical Touch Button |
| Housing Style | Base Mount - Dome Window |
| Sensing Mode (General) | Fixed Field |
| IP Rating | IP67, IP69K |
| Cable Length (m) | 0.15 |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Connection | Pigtail QD |
| Operation | Normally Open |
| Feature: Audible | No |
| Display | No |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Multiple (One or more wires/color, enables more colors than input wires) |
| Number of Colors | 3 |
| Product Size (mm) | 50 |
| Color Technology | RGB Configurable |
| Color Option 1 | Green |
| Quick Disconnect Type | M12 |
| Color Option 2 | Red |
| Color Option 3 | Yellow |
| Max Current Color (mA) | 150 |
| Number of Input Pins/Conductors | 5 |
| Supply Voltage | 12-30 V dc |
| Input Type | Bimodal (PNP/NPN) |
| Max Input Response Time (ms) | 40 |
| Physical Dimensions (LxWxH or DxH mm) | 50.0 x 67.3 |
| Environmental Rating | IP67; IP69K |
| High Temperature (up to 100Β° C) | 50 |
| Min Op. Temperature (Β°C) | -40 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Multi-Color Device | Simultaneous Colors On |
| Number of Beams | 1 |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50Β°C |
| Storage Temp (Β°C) | -40 to 70 |
| Activation Function | Optical |
| Pick-to-Light Function | F2 |
| Output Type | Bipolar (NPN & PNP) |
| Max Output Response Time (ms) | 300 |
| Button Operation | Latching |
| Maximum Sensing Distance (mm) | 50 |
| Lumens Color 1 | 14.2 |
| Color 1 - Wavelength/Color Temp/Coordinates | 522 nm |
| Lumens Color 2 | 7.1 |
| Color 2 - Wavelength/Color Temp/Coordinates | 620 nm |
| Lumens Color 3 | 20.5 |
| Color 3 - Wavelength/Color Temp/Coordinates | 576 nm |
