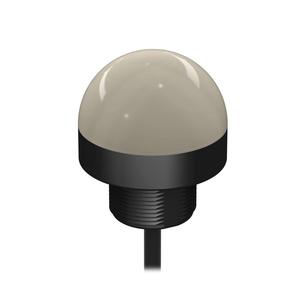

Bannerengineering K50LGRY2N LED Indicators
Technical Specifications of Banner LED Indicators K50LGRY2N:
| Housing Style | Base Mount - Dome Window |
| Connection | Cable |
| Supply Voltage | 18-30 V dc |
| Input Type | NPN |
Bannerengineering LED Indicators K50LGRY2N Technical Specifications
| Specification | Value |
|---|---|
| Type | K50 Core Series 50 mm General Purpose LED Indicator |
| Housing Style | Base Mount - Dome Window |
| IP Rating | IP67, IP69K |
| Cable Length (m) | 2 |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Connection | Cable |
| Feature: Audible | No |
| Display | No |
| Indication | Yes |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 3 |
| Product Size (mm) | 50 |
| Color Technology | Standard LED |
| Color Option 1 | Green |
| Animation Option 1 | Multiple |
| Color Option 2 | Red |
| Animation Option 2 | Multiple |
| Color Option 3 | Yellow |
| Animation Option 3 | Multiple |
| Max Current Color (mA) | 50 |
| Wire Selectable Function | Multi-Function |
| Number of Input Pins/Conductors | 4 |
| Supply Voltage | 18-30 V dc |
| Input Type | NPN |
| Max Input Response Time (ms) | 250 |
| Physical Dimensions (LxWxH or DxH mm) | 50.0 x 58.0 |
| Environmental Rating | IP67; IP69K |
| High Temperature (up to 100° C) | 50 |
| Min Op. Temperature (°C) | -40 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Multi-Color Device | Single Color On |
| Feature: Washdown Rated | Yes |
