In sourcing discussions, BANNERENGINEERING-K50LGRAL1YNQ is often placed next to Banner Photoelectric Sensor, Banner Bannerengineering K50Lgra2Yp and Banner Safety Light Curtain Type 4 S4B so procurement teams can align budgets and technical requirements effectively.

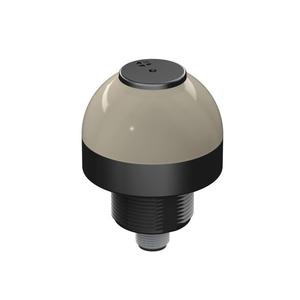

Bannerengineering K50LGRAL1YNQ LED Indicators
Technical Specifications of Banner LED Indicators K50LGRAL1YNQ:
| Housing Style | Base Mount - Dome Window |
| Connection | Integral QD |
| Supply Voltage | 18-30 V dc |
| Input Type | NPN |
Bannerengineering LED Indicators K50LGRAL1YNQ Technical Specifications
| Specification | Value |
|---|---|
| Type | K50 Core Series 50 mm General Purpose LED Indicator |
| Housing Style | Base Mount - Dome Window |
| IP Rating | IP50 |
| NEMA / UL Type Rating | NEMA and UL 4X, 13 |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Connection | Integral QD |
| Feature: Audible | Yes |
| Display | No |
| Indication | Yes |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 3 |
| Product Size (mm) | 50 |
| Color Technology | Standard LED |
| Color Option 1 | Green |
| Animation Option 1 | Solid On |
| Quick Disconnect Type | M12 |
| Color Option 2 | Red |
| Color Option 3 | Yellow |
| Max Current Color (mA) | 40 |
| Number of Input Pins/Conductors | 5 |
| Supply Voltage | 18-30 V dc |
| Input Type | NPN |
| Max Input Response Time (ms) | 10 |
| Physical Dimensions (LxWxH or DxH mm) | 50.0 x 68.0 |
| Environmental Rating | IP50 |
| High Temperature (up to 100° C) | 50 |
| Min Op. Temperature (°C) | -20 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Multi-Color Device | Single Color On |
| Feature: Quick Disconnect | Yes |
| Audible Alarm Type | Continuous |
| Max Audible Intensity (db at 1m) | 95 |
| Audible Operating Frequency (kHz) | 2.7 |
| Max Current - Audible Alarm (mA) | 40 |
| Secondary Material | Polycarbonate |
| Min Audible Intensity (db at 1m) | 95 |
