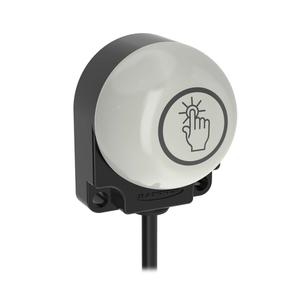

Banner K50FAPT2BRYC3QP Touch Button
The Banner K50FAPT2BRYC3QP Touch Button offers a Flat Mount - Dome Window housing style, Pigtail QD Connection, Normally Open operation, and IP67, IP69K rating. Manufactured by Banner under the Banner Touch Button category, this model belongs to the K30 Series.
| Connection | Pigtail QD |
| Color Technology | Standard LED |
| Supply Voltage | 12-30 V dc |
Banner K50FAPT2BRYC3QP Touch Button - Technical Specifications
| Specification | Value |
|---|---|
| Type | K50 Core Series 50 mm Multipurpose Illuminated Touch Buttons |
| Housing Style | Flat Mount - Dome Window |
| IP Rating | IP67, IP69K |
| Cable Length (m) | 0.15 |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Connection | Pigtail QD |
| Operation | Normally Open |
| Feature: Audible | No |
| Display | No |
| Mounting Thread | No Thread |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 3 |
| Product Size (mm) | 50 |
| Color Technology | Standard LED |
| Color Option 1 | Blue |
| Animation Option 1 | Solid On |
| Quick Disconnect Type | M12 |
| Color Option 2 | Red |
| Color Option 3 | Yellow |
| Max Current Color (mA) | 75 |
| Number of Input Pins/Conductors | 5 |
| Supply Voltage | 12-30 V dc |
| Input Type | PNP |
| Physical Dimensions (LxWxH or DxH mm) | 62.5 x 50.0 x 41.6 |
| Environmental Rating | IP67; IP69K |
| High Temperature (up to 100ยฐ C) | 50 |
| Min Op. Temperature (ยฐC) | -40 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Multi-Color Device | Single Color On |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50ยฐC |
| Storage Temp (ยฐC) | -40 to 70 |
| Activation Function | Capacitive Touch |
| Acknowledge (Sense) Light | Yellow |
| Mis-Pick Light | Red |
| Pick-to-Light Function | C3 |
| Output Type | PNP |
| Max Output Response Time (ms) | 50 |
| Button Operation | Momentary |
| Job Light | Blue |
| Lumens Color 2 | 13 |
| Color 2 - Wavelength/Color Temp/Coordinates | 625 nm |
| Lumens Color 3 | 24 |
| Color 3 - Wavelength/Color Temp/Coordinates | 591 nm |
