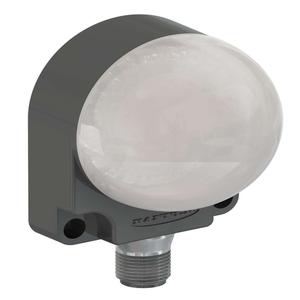

Banner K50FAPFF50YREQ Lighting and Indication
The Banner K50FAPFF50YREQ Lighting and Indication offers a Flat Mount - Dome Window style, PNP input type, 12-30 V dc supply voltage, and Integral QD connection. Manufactured by Banner under the Banner Lighting and Indication category, this model belongs to the Andon lights.
| Brand | Banner |
| Product Type | Lighting and Indication |
| Model Number | K50FAPFF50YREQ |
Banner K50FAPFF50YREQ Lighting and Indication – Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Flat Mount - Dome Window |
| Sensing Mode (General) | Fixed Field |
| IP Rating | IP67, IP69K |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Connection | Integral QD |
| Operation | Normally Open |
| Display | No |
| Mounting Thread | No Thread |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Product Size (mm) | 50 |
| Color Technology | Standard LED |
| Color Option 1 | Yellow |
| Animation Option 1 | Solid On |
| Quick Disconnect Type | M12 |
| Color Option 2 | Red |
| Number of Input Pins/Conductors | 4 |
| Supply Voltage | 12-30 V dc |
| Input Type | PNP |
| Environmental Rating | IP67; IP69K |
| High Temperature (up to 100° C) | 50 |
| Min Op. Temperature (°C) | -40 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Multi-Color Device | Single Color On |
| Feature: Quick Disconnect | Yes |
| Number of Beams | 1 |
| Feature: Washdown Rated | Yes |
| Actuation | Yes |
| Activation Function | Optical |
| Acknowledge (Sense) Light | Red |
| Pick-to-Light Function | E |
| Output Type | PNP |
| Max Output Response Time (ms) | 10 |
| Button Operation | Momentary |
| Maximum Sensing Distance (mm) | 50 |
