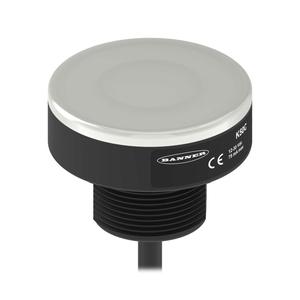

Bannerengineering K50CL2RGBKQP LED Indicators
Technical Specifications of Banner LED Indicators K50CL2RGBKQP:
| Housing Style | Base Mount - Flat Window |
| Connection | Pigtail QD |
| Supply Voltage | 18-30 V dc |
| Input Type | Communication Protocol |
Bannerengineering LED Indicators K50CL2RGBKQP Technical Specifications
| Specification | Value |
|---|---|
| Type | K50 Pro Series 50 mm Programmable Multicolor Indicator |
| Housing Style | Base Mount - Flat Window |
| IP Rating | IP66, IP67, IP69K |
| NEMA / UL Type Rating | NEMA and UL 4X, 13 |
| Cable Length (m) | 0.15 |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Connection | Pigtail QD |
| Feature: Audible | No |
| Display | No |
| Indication | Yes |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Communication Protocol |
| Number of Colors | Programmable |
| Product Size (mm) | 50 |
| Color Technology | RGB IO-Link |
| Color Option 1 | RGB |
| Animation Option 1 | IO-Link Controlled |
| Quick Disconnect Type | M12 |
| Max Current Color (mA) | 150 |
| Number of Input Pins/Conductors | 4 |
| Supply Voltage | 18-30 V dc |
| Input Type | Communication Protocol |
| Max Input Response Time (ms) | 30 |
| Physical Dimensions (LxWxH or DxH mm) | 50.0 x 37.0 |
| Environmental Rating | IP66; IP67; IP69K |
| High Temperature (up to 100Β° C) | 50 |
| Min Op. Temperature (Β°C) | -40 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Multi-Color Device | Simultaneous Colors On |
| Feature: Quick Disconnect | Yes |
| Feature: Washdown Rated | Yes |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50Β°C |
| Storage Temp (Β°C) | -40 to 70 |
| Dimming Option | Programmable |
| IO Link | Yes |
