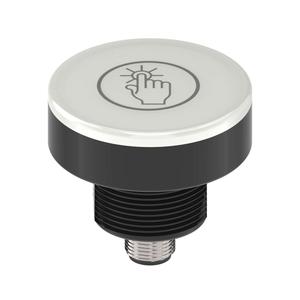

Banner K50CAPT2GRYF2Q Touch Button
The Banner K50CAPT2GRYF2Q Touch Button offers a Base Mount - Flat Window housing style, Integral QD Connection, Normally Open operation, and IP67, IP69K rating. Manufactured by Banner under the Banner Touch Button category, this model belongs to the K30 Series.
| Brand | Banner |
| Product Type | Tower Button |
| Model Number | K50CAPT2GRYF2Q |
Banner K50CAPT2GRYF2Q Touch Button - Technical Specifications
| Specification | Value |
|---|---|
| Type | K50 Core Series 50 mm Multipurpose Illuminated Touch Buttons |
| Housing Style | Base Mount - Flat Window |
| IP Rating | IP67, IP69K |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Connection | Integral QD |
| Operation | Normally Open |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 3 |
| Product Size (mm) | 50 |
| Color Technology | Standard LED |
| Color Option 1 | Green |
| Animation Option 1 | Solid On |
| Quick Disconnect Type | M12 |
| Max Current Color (mA) | 75 |
| Number of Input Pins/Conductors | 8 |
| Supply Voltage | 12-30 V dc |
| Input Type | PNP |
| Physical Dimensions (LxWxH or DxH mm) | 50.0 x 48.0 |
| Environmental Rating | IP67; IP69K |
| High Temperature (up to 100Β° C) | 50 |
| Min Op. Temperature (Β°C) | -40 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Multi-Color Device | Single Color On |
| Output Type | PNP |
| Max Output Response Time (ms) | 50 |
