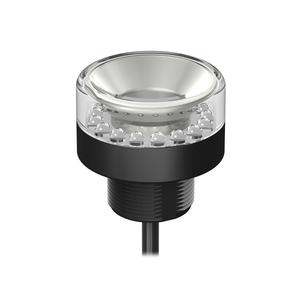

Bannerengineering K50BCLRA120 LED Indicators
Technical Specifications of Banner LED Indicators K50BCLRA120:
| Housing Style | Base Mount - Flat Window |
| Connection | Cable |
| Supply Voltage | 85-130 V ac/75-120 V dc |
| Input Type | AC |
Bannerengineering LED Indicators K50BCLRA120 Technical Specifications
| Specification | Value |
|---|---|
| Type | K50 Series Beacon High-Intensity Indicators |
| Housing Style | Base Mount - Flat Window |
| IP Rating | IP67, IP69K |
| NEMA / UL Type Rating | NEMA 4X, 13 |
| Cable Length (m) | 2 |
| Power | DC or AC |
| Primary Housing Material | Polycarbonate |
| Connection | Cable |
| Feature: Audible | No |
| Display | No |
| Indication | Yes |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 1 |
| Product Size (mm) | 50 |
| Color Technology | Standard LED |
| Color Option 1 | Red |
| Animation Option 1 | Solid On |
| Max Current Color (mA) | 60 |
| Number of Input Pins/Conductors | 2 |
| Supply Voltage | 85-130 V ac/75-120 V dc |
| Input Type | AC |
| Max Input Response Time (ms) | 0.5 |
| Physical Dimensions (LxWxH or DxH mm) | 50.0 x 49.0 |
| Environmental Rating | IP67; IP69K |
| High Temperature (up to 100Β° C) | 50 |
| Min Op. Temperature (Β°C) | -40 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Clear |
| Multi-Color Device | Single Color On |
| Feature: Washdown Rated | Yes |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50Β°C |
| Indication Intensity | High Brightness & Daylight Visible |
