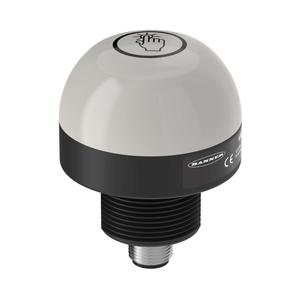

Home Brands Banner Lighting and Indication K50APTWXDQ Banner K50APTWXDQ Lighting and Indication The Banner K50APTWXDQ Lighting and Indication offers a Base Mount - Dome Window style, PNP input type, 12-30 V dc supply voltage, and Integral QD connection. Manufactured by Banner under the Banner Lighting and Indication category, this model belongs to the Andon lights.
Brand Banner Product Type Lighting and Indication Model Number K50APTWXDQ
Banner K50APTWXDQ Lighting and Indication β Technical Specifications Specification Value Housing Style Base Mount - Dome Window IP Rating IP67, IP69K Power DC Primary Housing Material Polycarbonate Connection Integral QD Operation Normally Open Feature: Audible No Display No Mounting Thread M30 x 1.5 Color Input Control Individual (One wire/color, same number of colors as input wires) Number of Colors 1 Product Size (mm) 50 Color Technology Standard LED Color Option 1 White Animation Option 1 Solid On Quick Disconnect Type M12 Max Current Color (mA) 75 Number of Input Pins/Conductors 4 Supply Voltage 12-30 V dc Input Type PNP Physical Dimensions (LxWxH or DxH mm) 50.0 x 66.0 Environmental Rating IP67; IP69K High Temperature (up to 100Β° C) 50 Min Op. Temperature (Β°C) -40 Primary Housing Color Black Primary Window Material Polycarbonate Diffused Feature: Quick Disconnect Yes Feature: Washdown Rated Yes Max Op. Relative Humidity Non-Condensing (%) 90% @ 50Β°C Storage Temp (Β°C) -40 to 70 Actuation Yes Activation Function Capacitive Touch Pick-to-Light Function D Output Type PNP I/O Block Compatible Yes Max Output Response Time (ms) 50 Button Operation Momentary Job Light White
