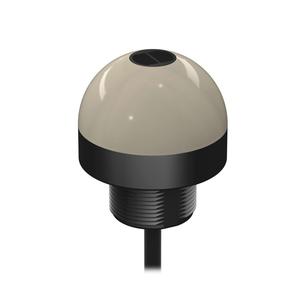

Banner K50APLPGXD Lighting and Indication
The Banner K50APLPGXD Lighting and Indication offers a Base Mount - Dome Window style, PNP input type, 12-30 V dc supply voltage, and Cable connection. Manufactured by Banner under the Banner Lighting and Indication category, this model belongs to the Andon lights.
| Brand | Banner |
| Product Type | Lighting and Indication |
| Model Number | K50APLPGXD |
Banner K50APLPGXD Lighting and Indication – Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Base Mount - Dome Window |
| Sensing Mode (General) | Retroreflective |
| Sensing Mode (Detailed) | Polarized |
| IP Rating | IP67, IP69K |
| NEMA / UL Type Rating | UL 4X, 13 |
| Cable Length (m) | 2 |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Connection | Cable |
| Operation | Normally Open |
| Feature: Audible | No |
| Display | No |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 1 |
| Product Size (mm) | 50 |
| Color Technology | Standard LED |
| Color Option 1 | Green |
| Animation Option 1 | Solid On |
| Max Current Color (mA) | 75 |
| Number of Input Pins/Conductors | 4 |
| Supply Voltage | 12-30 V dc |
| Input Type | PNP |
| Physical Dimensions (LxWxH or DxH mm) | 50.0 x 56.8 |
| Environmental Rating | IP67; IP69K |
| High Temperature (up to 100° C) | 50 |
| Min Op. Temperature (°C) | -40 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Multi-Color Device | Single Color On |
| Number of Beams | 1 |
| Feature: Washdown Rated | Yes |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50°C |
| Actuation | Yes |
| Activation Function | Optical |
| Pick-to-Light Function | D |
| Output Type | PNP |
| Max Output Response Time (ms) | 3 |
| Button Operation | Momentary |
| Job Light | Green |
| Maximum Sensing Distance (mm) | 2000 |
