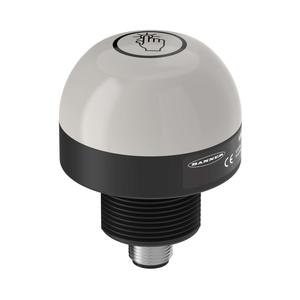

Home Brands Banner Lighting and Indication K50ANTGRCQ Banner K50ANTGRCQ Lighting and Indication The Banner K50ANTGRCQ Lighting and Indication offers a Base Mount - Dome Window style, NPN input type, 12-30 V dc supply voltage, and Integral QD connection. Manufactured by Banner under the Banner Lighting and Indication category, this model belongs to the Andon lights.
Brand Banner Product Type Lighting and Indication Model Number K50ANTGRCQ
Banner K50ANTGRCQ Lighting and Indication β Technical Specifications Specification Value Housing Style Base Mount - Dome Window IP Rating IP67, IP69K Power DC Primary Housing Material Polycarbonate Connection Integral QD Operation Normally Open Feature: Audible No Display No Mounting Thread M30 x 1.5 Color Input Control Individual (One wire/color, same number of colors as input wires) Number of Colors 2 Product Size (mm) 50 Color Technology Standard LED Color Option 1 Green Animation Option 1 Solid On Quick Disconnect Type M12 Color Option 2 Red Max Current Color (mA) 75 Number of Input Pins/Conductors 4 Supply Voltage 12-30 V dc Input Type NPN Physical Dimensions (LxWxH or DxH mm) 50.0 x 66.0 Environmental Rating IP67; IP69K High Temperature (up to 100Β° C) 50 Min Op. Temperature (Β°C) -40 Primary Housing Color Black Primary Window Material Polycarbonate Diffused Multi-Color Device Single Color On Feature: Quick Disconnect Yes Feature: Washdown Rated Yes Max Op. Relative Humidity Non-Condensing (%) 90% @ 50Β°C Storage Temp (Β°C) -40 to 70 Actuation Yes Activation Function Capacitive Touch Acknowledge (Sense) Light Red Pick-to-Light Function C Output Type NPN I/O Block Compatible Yes Max Output Response Time (ms) 50 Button Operation Momentary Job Light Green Lumens Color 1 29 Color 1 - Wavelength/Color Temp/Coordinates 525 nm Lumens Color 2 13 Color 2 - Wavelength/Color Temp/Coordinates 625 nm
