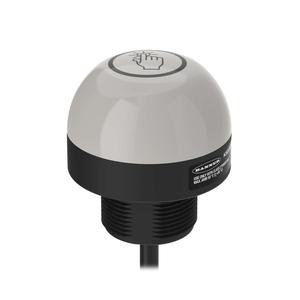

Banner K50ALBT2RGH Touch Button

Name: Bannerengineering K50ALBT2RGH
Brand: IndMALL
SKU: ce64207d006c
Rating: 4.3 (4 reviews)

The Banner K50ALBT2RGH Touch Button offers a Base Mount - Dome Window housing style, Cable Connection, Normally Open operation, and IP67, IP69K rating. Manufactured by Banner under the Banner Touch Button category, this model belongs to the K30 Series.

Datasheet

Connection	Cable
Color Technology	Standard LED
Supply Voltage	12-30 V dc

Banner K50ALBT2RGH Touch Button - Technical Specifications

Specification	Value
Type	K50 Core Series 50 mm Multipurpose Illuminated Touch Buttons
Housing Style	Base Mount - Dome Window
IP Rating	IP67, IP69K
Cable Length (m)	0.15
Power	DC
Primary Housing Material	Polycarbonate
Connection	Cable
Operation	Normally Open
Feature: Audible	No
Display	No
Mounting Thread	M30 x 1.5
Color Input Control	Individual (One wire/color, same number of colors as input wires)
Number of Colors	2
Product Size (mm)	50
Color Technology	Standard LED
Color Option 1	Red
Animation Option 1	Solid On
Color Option 2	Green
Max Current Color (mA)	75
Number of Input Pins/Conductors	5
Supply Voltage	12-30 V dc
Input Type	PNP
Physical Dimensions (LxWxH or DxH mm)	50.0 x 55.0
Environmental Rating	IP67; IP69K
High Temperature (up to 100° C)	50
Min Op. Temperature (°C)	-40
Primary Housing Color	Black
Primary Window Material	Polycarbonate Diffused
Multi-Color Device	Single Color On
Max Op. Relative Humidity Non-Condensing (%)	90% @ 50°C
Storage Temp (°C)	-40 to 70
Activation Function	Capacitive Touch
Pick-to-Light Function	H
Output Type	Bipolar (NPN & PNP)
Max Output Response Time (ms)	150
Button Operation	Latching
Lumens Color 1	13
Color 1 - Wavelength/Color Temp/Coordinates	625 nm
Lumens Color 2	29
Color 2 - Wavelength/Color Temp/Coordinates	525 nm
