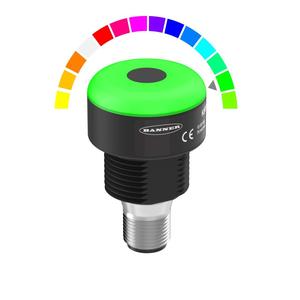

Bannerengineering K30PAF100AMGRY4Q Photoelectric Sensors
Technical Specifications of Banner Photoelectric Sensors K30PAF100AMGRY4Q:
| Connection | Integral QD |
Bannerengineering Photoelectric Sensors K30PAF100AMGRY4Q Technical Specifications
| Specification | Value |
|---|---|
| Type | K30 Pro Optical Series |
| IP Rating | IP65 |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Primary Housing Material | Polycarbonate |
| Operation | Normally Open |
| Min Op. Temperature (Β°C) | -20 |
| Feature: Quick Disconnect | Yes |
| Power | DC |
| Housing Style | Base Mount - Dome Window |
| Feature: Audible | No |
| Number of Beams | 1 |
| Display | No |
| Sensing Mode (General) | Proximity |
| Actuation | Yes |
| Activation Function | Optical |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Multiple (One or more wires/color, enables more colors than input wires) |
| Number of Colors | 3 |
| Product Size (mm) | 30 |
| Color Technology | Standard LED |
| Color Option 1 | Green |
| Max Current Color (mA) | 150 |
| Number of Input Pins/Conductors | 5 |
| Supply Voltage | 10-30 V dc |
| Input Type | Bimodal (PNP/NPN) |
| Max Output Response Time (ms) | 120 |
| Maximum Sensing Distance (mm) | 100 |
| Physical Dimensions (LxWxH or DxH mm) | 30.0 x 48.0 |
| Environmental Rating | IP65 |
| High Temperature (up to 100Β° C) | 50 |
| Primary Housing Color | Black |
| Button Operation | Momentary |
| Primary Window Material | Polycarbonate |
| Output Type | Bipolar (NPN & PNP) |
| Lumens Color 1 | 5.8 |
| Color 1 - Wavelength/Color Temp/Coordinates | 522 nm |
| Color Option 2 | Red |
| Lumens Color 2 | 3.2 |
| Color 2 - Wavelength/Color Temp/Coordinates | 620 nm |
| Max Input Response Time (ms) | 40 |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50Β°C |
| Storage Temp (Β°C) | -40 to 70 |
| Multi-Color Device | Simultaneous Colors On |
| Color Option 3 | Yellow |
| Lumens Color 3 | 7.9 |
| Color 3 - Wavelength/Color Temp/Coordinates | 576 nm |
| Pick-to-Light Function | C |
| Wire Selectable Function | Programmable |
| Feature: Washdown Rated | Yes |
| Pro-Editor Compatible (Discrete) | Yes |
