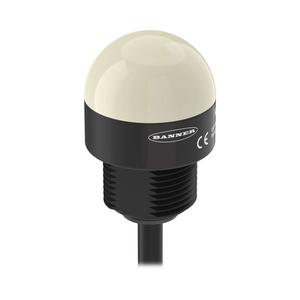

Bannerengineering K30LIGXXP LED Indicators
Technical Specifications of Banner LED Indicators K30LIGXXP:
| Housing Style | Base Mount - Dome Window |
| Connection | Cable |
| Supply Voltage | 8-30 V dc |
| Input Type | PNP |
Bannerengineering LED Indicators K30LIGXXP Technical Specifications
| Specification | Value |
|---|---|
| Type | K30 Core Series 30 mm General Purpose LED Indicator |
| Housing Style | Base Mount - Dome Window |
| IP Rating | IP67, IP69K |
| NEMA / UL Type Rating | UL 4X, 13 |
| Cable Length (m) | 2 |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Connection | Cable |
| Feature: Audible | No |
| Display | No |
| Indication | Yes |
| Mounting Thread | M22 x 1.5 |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 1 |
| Product Size (mm) | 30 |
| Color Technology | Standard LED |
| Color Option 1 | Green |
| Animation Option 1 | Solid On |
| Number of Input Pins/Conductors | 4 |
| Supply Voltage | 8-30 V dc |
| Input Type | PNP |
| Physical Dimensions (LxWxH or DxH mm) | 30.0 x 44.5 |
| Environmental Rating | IP67; IP69K |
| High Temperature (up to 100° C) | 50 |
| Min Op. Temperature (°C) | -40 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Multi-Color Device | Single Color On |
| Feature: Washdown Rated | Yes |
| Max Op. Relative Humidity Non-Condensing (%) | 95% @ 50°C |
| Storage Temp (°C) | -40 to 70 |
| Feature: Hazardous Area | Yes |
