Bannerengineering K30LGRXPQ LED Indicators

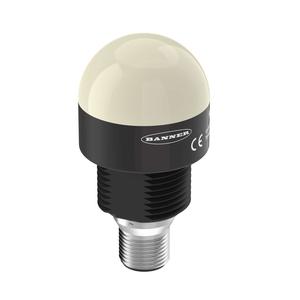

Banner K30LGRXPQ LED Indicators
| Brand | Banner |
| Product Type | LED Indicator |
| Model Number | K30LGRXPQ |
Bannerengineering LED Indicators K30LGRXPQ Technical Specifications
| Specification | Value |
|---|---|
| Type | K30 Core Series 30 mm General Purpose LED Indicator |
| Housing Style | Base Mount - Dome Window |
| IP Rating | IP67, IP69K |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Connection | Integral QD |
| Mounting Thread | M22 x 1.5 |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 2 |
| Product Size (mm) | 30 |
| Color Technology | Standard LED |
| Color Option 1 | Green |
| Animation Option 1 | Solid On |
| Quick Disconnect Type | M12 |
| Max Current Color (mA) | 25 |
| Supply Voltage | 10-30 V dc |
| Input Type | PNP |
| Max Input Response Time (ms) | 1 |
| Physical Dimensions (LxWxH or DxH mm) | 30.0 x 57.0 |
| Environmental Rating | IP67; IP69K |
| High Temperature (up to 100° C) | 50 |
| Min Op. Temperature (°C) | -40 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Multi-Color Device | Single Color On |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50°C |
| Storage Temp (°C) | -40 to 70 |
