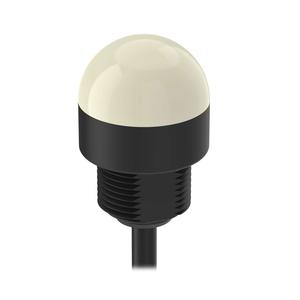

Bannerengineering K30L2RGB7 LED Indicators
Technical Specifications of Banner LED Indicators K30L2RGB7:
| Housing Style | Base Mount - Dome Window |
| Connection | Cable |
| Supply Voltage | 10-30 V dc |
| Input Type | Bimodal (PNP/NPN) |
Bannerengineering LED Indicators K30L2RGB7 Technical Specifications
| Specification | Value |
|---|---|
| Type | K30 Pro Series 30 mm Programmable Multicolor Indicator |
| Housing Style | Base Mount - Dome Window |
| IP Rating | IP67, IP69K |
| NEMA / UL Type Rating | UL 4X, 12, 13 |
| Cable Length (m) | 2 |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Connection | Cable |
| Feature: Audible | No |
| Display | No |
| Indication | Yes |
| Mounting Thread | M22 x 1.5 |
| Color Input Control | Multiple (One or more wires/color, enables more colors than input wires) |
| Number of Colors | 7 |
| Product Size (mm) | 30 |
| Color Technology | RGB Configurable |
| Color Option 1 | Red |
| Animation Option 1 | Solid On |
| Color Option 2 | Green |
| Color Option 3 | Blue |
| Color Option 4 | Yellow |
| Color Option 5 | White |
| Max Current Color (mA) | 60 |
| Wire Selectable Function | Flashing |
| Number of Input Pins/Conductors | 5 |
| Supply Voltage | 10-30 V dc |
| Input Type | Bimodal (PNP/NPN) |
| Max Input Response Time (ms) | 250 |
| Physical Dimensions (LxWxH or DxH mm) | 30.0 x 44.5 |
| Environmental Rating | IP67; IP69K |
| High Temperature (up to 100Β° C) | 50 |
| Min Op. Temperature (Β°C) | -40 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Multi-Color Device | Single Color On |
| Feature: Washdown Rated | Yes |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50Β°C |
| Storage Temp (Β°C) | -40 to 70 |
| Lumens Color 1 | 3.2 |
| Color 1 - Wavelength/Color Temp/Coordinates | 625 nm |
| Lumens Color 2 | 4.6 |
| Color 2 - Wavelength/Color Temp/Coordinates | 525 nm |
| Lumens Color 3 | 0.7 |
| Color 3 - Wavelength/Color Temp/Coordinates | 470 nm |
| Dimming Option | Programmable |
| Lumens Color 4 | 7.1 |
| Color 4 - Wavelength/Color Temp/Coordinates | 0.449, 0.474 |
| Lumens Color 5 | 6.9 |
| Color 5 - Wavelength/Color Temp/Coordinates | 5700K |
| Color Option 6 | Magenta |
| Lumens Color 6 | 4.5 |
| Color 6 - Wavelength/Color Temp/Coordinates | 0.370, 0.179 |
| Color Option 7 | Cyan |
| Lumens Color 7 | 5.3 |
| Color 7 - Wavelength/Color Temp/Coordinates | 0.194, 0.474 |
