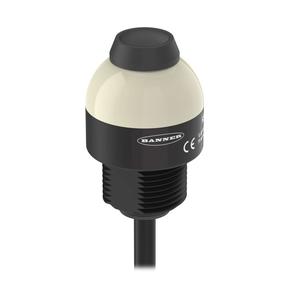

Banner K30APPBGRE Lighting and Indication
The Banner K30APPBGRE Lighting and Indication offers a Base Mount - Dome Window style, PNP input type, 12-30 V dc supply voltage, and Cable connection. Manufactured by Banner under the Banner Lighting and Indication category, this model belongs to the Andon lights.
| Brand | Banner |
| Product Type | Lighting and Indication |
| Model Number | K30APPBGRE |
Banner K30APPBGRE Lighting and Indication – Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Base Mount - Dome Window |
| IP Rating | IP65 |
| NEMA / UL Type Rating | NEMA 13 |
| Cable Length (m) | 2 |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Connection | Cable |
| Operation | Normally Open |
| Feature: Audible | No |
| Display | No |
| Mounting Thread | M22 x 1.5 |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 2 |
| Product Size (mm) | 30 |
| Color Technology | Standard LED |
| Color Option 1 | Green |
| Animation Option 1 | Solid On |
| Color Option 2 | Red |
| Max Current Color (mA) | 55 |
| Number of Input Pins/Conductors | 4 |
| Supply Voltage | 12-30 V dc |
| Input Type | PNP |
| Max Input Response Time (ms) | 300 |
| Physical Dimensions (LxWxH or DxH mm) | 30.0 x 49.4 |
| Environmental Rating | IP65 |
| High Temperature (up to 100° C) | 50 |
| Min Op. Temperature (°C) | -40 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Multi-Color Device | Single Color On |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50°C |
| Storage Temp (°C) | -40 to 70 |
| Actuation | Yes |
| Activation Function | Push-Button |
| Mis-Pick Light | Red |
| Pick-to-Light Function | E |
| Output Type | PNP |
| Max Output Response Time (ms) | 150 |
| Button Operation | Momentary |
| Secondary Material | Thermoplastic |
| Job Light | Green |
