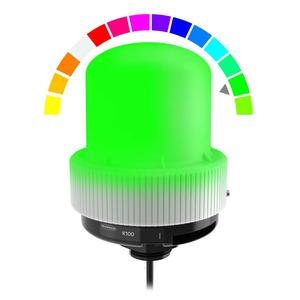

Bannerengineering K100PLRGB7 LED Indicators
Banner K100PLRGB7 LED Indicators
| Brand | Banner |
| Product Type | LED Indicator |
| Model Number | K100PLRGB7 |
Bannerengineering LED Indicators K100PLRGB7 Technical Specifications
| Specification | Value |
|---|
| Type | K100 Pro Beacon Series |
| Housing Style | Base Mount - Dome Window |
| IP Rating | IP66, IP69K |
| Cable Length (m) | 2 |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Connection | Cable |
| Mounting Thread | M36 x 2.0 |
| Color Input Control | Multiple (One or more wires/color, enables more colors than input wires) |
| Number of Colors | 14 |
| Product Size (mm) | 100 |
| Color Technology | RGB Configurable |
| Color Option 1 | Red |
| Animation Option 1 | Programmable |
| Max Current Color (mA) | 395 |
| Supply Voltage | 12-48 V dc |
| Input Type | Bimodal (PNP/NPN) |
| Max Input Response Time (ms) | 350 |
| Physical Dimensions (LxWxH or DxH mm) | 118.5 x 173.2 |
| Environmental Rating | IP69K |
| High Temperature (up to 100Β° C) | 50 |
| Min Op. Temperature (Β°C) | -40 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Clear |
| Multi-Color Device | Simultaneous Colors On |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50Β°C |
| Storage Temp (Β°C) | -40 to 70 |
