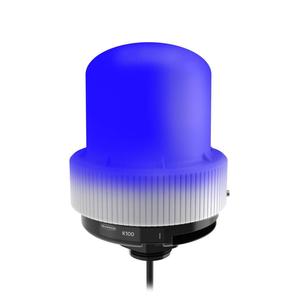

Bannerengineering K100PLNZRGB7 LED Indicators
Technical Specifications of Banner LED Indicators K100PLNZRGB7:
| Housing Style | Base Mount - Dome Window |
| Connection | Cable |
| Supply Voltage | 100-240 V ac |
Bannerengineering LED Indicators K100PLNZRGB7 Technical Specifications
| Specification | Value |
|---|---|
| Type | K100 Pro Hazardous Beacon Series |
| Housing Style | Base Mount - Dome Window |
| IP Rating | IP66, IP69K |
| NEMA / UL Type Rating | UL 4X |
| Cable Length (m) | 2 |
| Power | AC |
| Primary Housing Material | Polycarbonate |
| Connection | Cable |
| Feature: Audible | No |
| Display | No |
| Indication | Yes |
| Mounting Thread | M36 x 2.0 |
| Color Input Control | Multiple (One or more wires/color, enables more colors than input wires) |
| Number of Colors | 14 |
| Product Size (mm) | 100 |
| Color Technology | RGB Configurable |
| Color Option 1 | Red |
| Animation Option 1 | Programmable |
| Color Option 2 | Green |
| Animation Option 2 | Programmable |
| Color Option 3 | Blue |
| Animation Option 3 | Programmable |
| Color Option 4 | Yellow |
| Color Option 5 | White |
| Supply Voltage | 100-240 V ac |
| Physical Dimensions (LxWxH or DxH mm) | 118.5 x 173.2 |
| Environmental Rating | IP69K |
| High Temperature (up to 100Β° C) | 60 |
| Min Op. Temperature (Β°C) | -40 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Multi-Color Device | Simultaneous Colors On |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50Β°C |
| Indication Intensity | High Brightness |
| Animation Option 4 | Programmable |
| Lumens Color 1 | 36 |
| Color 1 - Wavelength/Color Temp/Coordinates | 620 nm |
| Lumens Color 2 | 73 |
| Color 2 - Wavelength/Color Temp/Coordinates | 525 nm |
| Lumens Color 3 | 14 |
| Color 3 - Wavelength/Color Temp/Coordinates | 467 nm |
| Feature: Hazardous Area | Yes |
| Dimming Option | Programmable |
| Lumens Color 4 | 91 |
| Color 4 - Wavelength/Color Temp/Coordinates | 575 nm |
| Animation Option 5 | Programmable |
| Lumens Color 5 | 112 |
| Color 5 - Wavelength/Color Temp/Coordinates | 6000K |
| Color Option 6 | Magenta |
| Lumens Color 6 | 47 |
| Color 6 - Wavelength/Color Temp/Coordinates | 0.387, 0.182 |
| Color Option 7 | Cyan |
| Lumens Color 7 | 83 |
| Color 7 - Wavelength/Color Temp/Coordinates | 492 nm |
| Animation Option 6 | Programmable |
