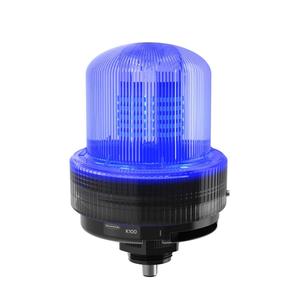

Bannerengineering K100PBLNBYRAQ LED Indicators
Banner K100PBLNBYRAQ LED Indicators
| Brand | Banner |
| Product Type | LED Indicator |
| Model Number | K100PBLNBYRAQ |
Bannerengineering LED Indicators K100PBLNBYRAQ Technical Specifications
| Specification | Value |
|---|
| Type | K100 Pro Hazardous Beacon Series |
| Housing Style | Base Mount - Dome Window |
| IP Rating | IP66, IP69K |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Connection | Integral QD |
| Mounting Thread | M36 x 2.0 |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 3 |
| Product Size (mm) | 100 |
| Color Technology | Standard LED |
| Color Option 1 | Blue |
| Animation Option 1 | Programmable |
| Quick Disconnect Type | M12 |
| Max Current Color (mA) | 395 |
| Supply Voltage | 12-48 V dc |
| Input Type | Bimodal (PNP/NPN) |
| Max Input Response Time (ms) | 325 |
| Physical Dimensions (LxWxH or DxH mm) | 118.5 x 173.2 |
| Environmental Rating | IP69K |
| High Temperature (up to 100Β° C) | 60 |
| Min Op. Temperature (Β°C) | -40 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Clear |
| Multi-Color Device | Single Color On |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50Β°C |
| Storage Temp (Β°C) | -40 to 70 |
