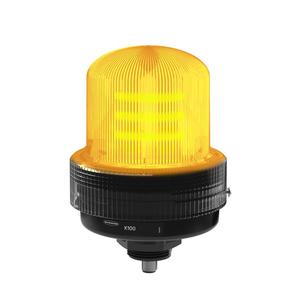

Bannerengineering K100B-BLYQ LED Indicators
Technical Specifications of Banner LED Indicators K100B-BLYQ:
| Housing Style | Base Mount - Dome Window |
| Connection | Integral QD |
| Supply Voltage | 12 V dc - 48 V dc |
| Input Type | Bimodal (PNP/NPN) |
Bannerengineering LED Indicators K100B-BLYQ Technical Specifications
| Specification | Value |
|---|---|
| Type | K100 Basic Beacon Series |
| Housing Style | Base Mount - Dome Window |
| IP Rating | IP66 |
| NEMA / UL Type Rating | UL 4X |
| Power | DC |
| Primary Housing Material | Polycarbonate |
| Connection | Integral QD |
| Feature: Audible | No |
| Display | No |
| Indication | Yes |
| Mounting Thread | M36 x 2.0 |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 1 |
| Product Size (mm) | 100 |
| Color Technology | Standard LED |
| Color Option 1 | Yellow |
| Quick Disconnect Type | M12 |
| Max Current Color (mA) | 760 |
| Wire Selectable Function | Multi-Function |
| Number of Input Pins/Conductors | 5 |
| Supply Voltage | 12 V dc - 48 V dc |
| Input Type | Bimodal (PNP/NPN) |
| Max Input Response Time (ms) | 300 |
| Physical Dimensions (LxWxH or DxH mm) | 118.5 x 173.2 |
| High Temperature (up to 100Β° C) | 60 |
| Min Op. Temperature (Β°C) | -40 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Clear |
| Feature: Quick Disconnect | Yes |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50Β°C |
| Storage Temp (Β°C) | -40 to 70 |
| Indication Intensity | High Brightness & Daylight Visible |
| Lumens Color 1 | 525 |
| Color 1 - Wavelength/Color Temp/Coordinates | 589 nm |
