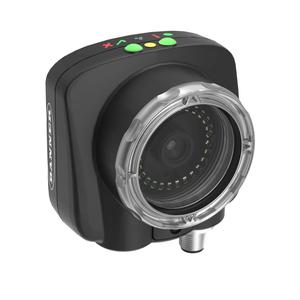

Banner IVU2PTGW06 Vision Sensor
The Banner IVU2PTGW06 Vision Sensor offers a 6 mm lens, 752 x 480 pixels resolution, and IP67 rating. Manufactured by Banner under the Banner Vision Sensor category, this model belongs to the IVU Series.
| Device Type | Vision |
| Image Resolution | 752 x 480 pixels |
| IP Rating | IP67 |
Banner IVU2PTGW06 Vision Sensor – Technical Specifications
| Specification | Value |
|---|---|
| IP Rating | IP67 |
| Primary Housing Material | Thermoplastic |
| Device Type | Vision |
| Feature: Washdown Rated | Yes |
| Camera Housing Size (HxWxL mm) | 79 x 81 x 52 |
| Image Resolution | 752 x 480 pixels |
| Lens (mm) | 6 |
| Imager Type | Grayscale |
| Feature: PC Interface | Yes |
| EtherNet/IP | Yes |
| Modbus/TCP | Yes |
| PCCC | Yes |
| PROFINET | Yes |
| RS-232 | Yes |
| Light Color | White |
| Feature: Touchscreen Interface | Yes |
| Touchscreen Display | Integrated |
