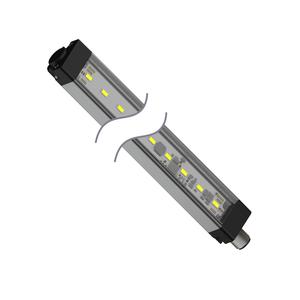

Banner HLS28XWGRYB5-285X24Q Lighting and Indication
The Banner HLS28XWGRYB5-285X24Q Lighting and Indication offers a Linear Strip style, No Thread mounting, 24 V dc supply voltage, and Integral QD connection. Manufactured by Banner under the Banner Lighting and Indication category, this model belongs to the WLS28-2 Series.
| Brand | Banner |
| Product Type | Lighting and Indication |
| Model Number | HLS28XWGRYB5-285X24Q |
Banner HLS28XWGRYB5-285X24Q Lighting and Indication – Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Linear Strip |
| IP Rating | IP50 |
| Power | DC |
| Primary Housing Material | Aluminum |
| Connection | Integral QD |
| Feature: Audible | No |
| Display | No |
| Indication | Yes |
| Mounting Thread | No Thread |
| Color Input Control | Multiple (One or more wires/color, enables more colors than input wires) |
| Number of Colors | 5 |
| Product Size (mm) | 28 |
| Color Technology | Standard LED |
| Color Option 1 | Daylight White |
| Animation Option 1 | Solid On |
| Quick Disconnect Type | M12 |
| Color Option 2 | Green |
| Color Option 3 | Red |
| Color Option 4 | Yellow |
| Color Option 5 | Blue |
| Max Current Color (mA) | 400 |
| Number of Input Pins/Conductors | 4 |
| Supply Voltage | 24 V dc |
| Physical Dimensions (LxWxH or DxH mm) | 327.0 x 28.0 x 21.0 |
| Environmental Rating | IP50 |
| High Temperature (up to 100° C) | 50 |
| Min Op. Temperature (°C) | -40 |
| Primary Window Material | Polycarbonate Clear |
| Multi-Color Device | Single Color On |
| Feature: Quick Disconnect | Yes |
| Storage Temp (°C) | -40 to 70 |
| Lumens Color 1 | 650 |
| Color 1 - Wavelength/Color Temp/Coordinates | 5000K (Daylight) |
| Lumens Color 2 | 400 |
| Color 2 - Wavelength/Color Temp/Coordinates | 525 nm |
| Lumens Color 3 | 185 |
| Color 3 - Wavelength/Color Temp/Coordinates | 625 nm |
| Feature: Hazardous Area | Yes |
| Illumination | Yes |
| Illuminated Length (LxWxH mm) | 285 |
| Lumens Color 4 | 570 |
| Color 4 - Wavelength/Color Temp/Coordinates | 580 nm |
| Lumens Color 5 | 125 |
| Color 5 - Wavelength/Color Temp/Coordinates | 470 nm |
