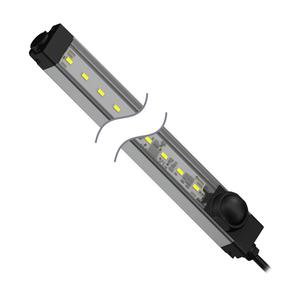

Banner HLS28XW145XM Lighting and Indication
The Banner HLS28XW145XM Lighting and Indication offers a Linear Strip style, No Thread mounting, 12-30 V dc supply voltage, and Cable connection. Manufactured by Banner under the Banner Lighting and Indication category, this model belongs to the WLS28-2 Series.
| Brand | Banner |
| Product Type | Lighting and Indication |
| Model Number | HLS28XW145XM |
Banner HLS28XW145XM Lighting and Indication – Technical Specifications
| Specification | Value |
|---|---|
| Housing Style | Linear Strip |
| IP Rating | IP50 |
| Cable Length (m) | 2 |
| Power | DC |
| Primary Housing Material | Aluminum |
| Connection | Cable |
| Feature: Audible | No |
| Display | No |
| Mounting Thread | No Thread |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number of Colors | 1 |
| Product Size (mm) | 28 |
| Color Technology | Standard LED |
| Color Option 1 | Cool White |
| Animation Option 1 | Solid On |
| Max Current Color (mA) | 400 |
| Number of Input Pins/Conductors | 3 |
| Supply Voltage | 12-30 V dc |
| Physical Dimensions (LxWxH or DxH mm) | 213.5 x 28.0 x 35.9 |
| Environmental Rating | IP50 |
| High Temperature (up to 100° C) | 60 |
| Min Op. Temperature (°C) | -20 |
| Primary Window Material | Polycarbonate Clear |
| Storage Temp (°C) | -40 to 70 |
| Lumens Color 1 | 400 |
| Color 1 - Wavelength/Color Temp/Coordinates | 6500K (Cool) |
| Feature: Hazardous Area | Yes |
| Illumination | Yes |
| Illuminated Length (LxWxH mm) | 145 |
| Illumination Switch Function | Motion Activated |
