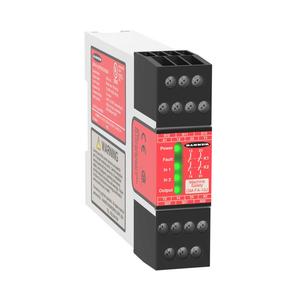

Banner GM-FA-10J Safety Relay
The Banner GM-FA-10J Safety Relay offers 3, rating, Screw terminal type. Manufactured by Banner under the Banner Safety Relay category, this model belongs to the ATK Series.
| Brands | Banner |
| Product Type | Safety Controllers and Safety Relays |
| Model Number | GM-FA-10J |
Banner GM-FA-10J Safety Relay – Technical Specifications
| Specification | Value |
|---|---|
| Type | ES and GM Series E-Stop and Guard Monitoring Safety Relays |
| Device Type | Safety Relay |
| IP Rating | IP20 |
| Power | AC/DC Universal |
| Supply Voltage | 24 V ac/dc +/- 15% |
| Recovery Time | 250 |
| PL Rating | e |
| SIL Rating | 3 |
| Relative Humidity | 90% @ 50° C |
| Dimension (H x W x D in mm) | 84 x 22.5 x 118 |
| Number of Safe Inputs | 2 |
| Input Configuration | 1 complementary or 2 x complementary (contact) |
| Output Configuration | 2 NO |
| Safe Output Rating | Relay - 6 A |
| Power Consumption | 3 W / 3 VA |
| Response Time (ms) | 35 (max.) |
| Terminal Type | Screw |
| Removable Terminals | Yes |
| Safety Category Rating | 4 |
| Max Operating Temperature ( °C) | 50 |
