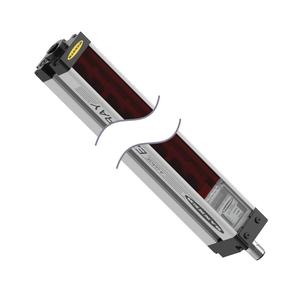

Bannerengineering EA5R300NUXMODQ: EZ-Array Series Measuring Light Curtain
Technical Specifications of Banner EZ-Array Series Measuring Light Curtain EA5R300NUXMODQ:
| Sensing Mode (Detailed) | Receiver |
| Quick Disconnect Type | M12 |
| Power Supply | 12-30 V dc |
| Discrete Output | NPN |
Bannerengineering EZ-Array Series Measuring Light Curtain EA5R300NUXMODQ Technical Specifications
| Specification | Value |
|---|---|
| Sensing Mode (Detailed) | Receiver |
| Primary Housing Material | Aluminum |
| Quick Disconnect Type | M12 |
| Housing Length (mm) | 379 |
| Device Type | Two-Piece |
| Beam Spacing | 5 mm |
| Modbus RTU | Yes |
| RS-485 | Yes |
| Power Supply | 12-30 V dc |
| Emitter/Receiver Range (m) | 0.4 - 4 |
| Discrete Output | NPN |
| Analog Output | Voltage (0-10 V) |
| Max Relative Humidity | 95% |
| Minimum Object Sensitivity (mm) | 5-10 |
| Number of Beams | 60 |
| Min Temp (°C) | -40 |
| Max Temp (°C) | 70 |
| Array Length (mm) | 300 |
