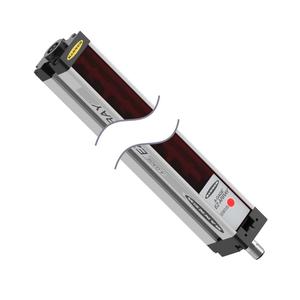

Bannerengineering EA5R1800NIXMODQ: EZ-Array Series Measuring Light Curtain
Technical Specifications of Banner EZ-Array Series Measuring Light Curtain EA5R1800NIXMODQ:
| Sensing Mode (Detailed) | Receiver |
| Quick Disconnect Type | M12 |
| Power Supply | 12-30 V dc |
| Discrete Output | NPN |
Bannerengineering EZ-Array Series Measuring Light Curtain EA5R1800NIXMODQ Technical Specifications
| Specification | Value |
|---|---|
| Sensing Mode (Detailed) | Receiver |
| Primary Housing Material | Aluminum |
| Quick Disconnect Type | M12 |
| Housing Length (mm) | 1878 |
| Device Type | Two-Piece |
| Beam Spacing | 5 mm |
| Modbus RTU | Yes |
| RS-485 | Yes |
| Power Supply | 12-30 V dc |
| Emitter/Receiver Range (m) | 0.4 - 4 |
| Discrete Output | NPN |
| Analog Output | Current (4-20 mA) |
| Max Relative Humidity | 95% |
| Minimum Object Sensitivity (mm) | 5-10 |
| Number of Beams | 360 |
| Min Temp (Β°C) | -40 |
| Max Temp (Β°C) | 70 |
| Array Length (mm) | 1800 |
